Key facts
- Brand
- Sampo
- Model
- AM-PY20D
- Category
- Air conditioner
- Industry
- Appliances
- Documents
- 2
- Languages
- ZH · JA
- Last added
- 2012-03-19
Start here

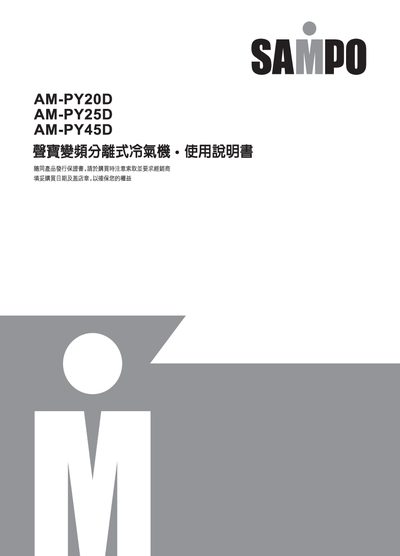

Sampo AM-PY20D/AM-PY25D/AM-PY45D Air Conditioner User Manual
This manual provides safety guidelines, pre‑use precautions, and detailed descriptions of each component of the indoor and outdoor units. It explains how to install the piping, connect power, and set up the remote control.
Operational instructions cover temperature setting, fan speed, wind direction, timer functions, power‑saving mode, and cleaning procedures. The document also includes troubleshooting tips, maintenance recommendations, and a full specification table for the three models. This manual is written in Chinese.
Sampo AM-PY20D specifications
| Model | AM-PY20D |
|---|---|
| Indoor unit dimensions (W×H×D, mm) | 810×295×210 |
| Outdoor unit dimensions (W×H×D, mm) | 800×555×300 |
Source: Sampo AM-PY20D/AM-PY25D/AM-PY45D Air Conditioner User Manual
All Sampo AM-PY20D documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What installation height is recommended for the indoor unit?
The indoor unit should be installed at a height of about 2.5 m.
From: Sampo AM-PY20D/AM-PY25D/AM-PY45D Air Conditioner User Manual
What are the IP protection ratings for the indoor and outdoor sides?
The indoor side has an IPX0 rating and the outdoor side has an IPX4 rating.
From: Sampo AM-PY20D/AM-PY25D/AM-PY45D Air Conditioner User Manual
How do I set a timer for automatic on/off?
Press the timer key to program a scheduled power‑on or power‑off time; the timer can also be cancelled with the same key.
From: Sampo AM-PY20D/AM-PY25D/AM-PY32D/AM-PY36D/AM-PY45D/AM-PY56D air conditioner User Manual
What installation height is recommended for the indoor unit?
The indoor unit should be installed at a height of about 2.5 meters.
From: Sampo AM-PY20D/AM-PY25D/AM-PY32D/AM-PY36D/AM-PY45D/AM-PY56D air conditioner User Manual
