Key facts
- Brand
- Panasonic
- Model
- KX-TDA200
- Category
- Telephone
- Industry
- Electronics
- Documents
- 6
- Languages
- ZH · EN
- Last added
- 2012-08-07
Start here

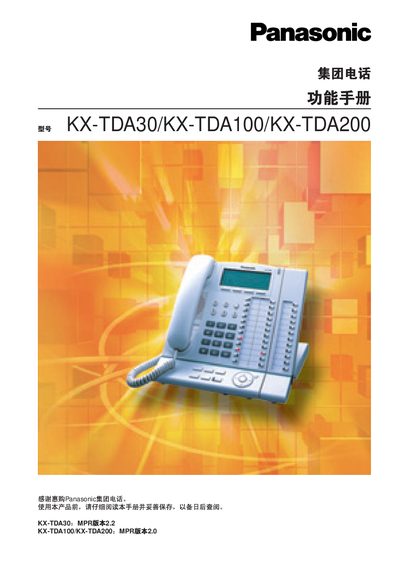

Panasonic KX-TDA30/KX-TDA100/KX-TDA200 Telephone Function Manual
This function manual serves as the complete reference for Panasonic's KX‑TDA30, KX‑TDA100, and KX‑TDA200 group telephone systems. It explains how to use the system’s many features and how to maximize their benefits.
The manual is organized into four main sections: Call Processing Functions, System Configuration and Management Functions, Programming, and Accessories. It also includes an index of functional terms and references to related installation and user manuals. This manual is written in Chinese.
Panasonic KX-TDA200 specifications
| Minimum software version (KX‑TDA30) | 5.0000 or later |
|---|---|
| Minimum software version (KX‑TDA100/200) | 5.0000 or later |
| Minimum software version (KX‑TDA600) | 5.0000 or later |
| Cell Station frequency range (2.4 GHz) | 2401 MHz – 2480 MHz |
| Cell Station output power (2.4 GHz) | 0.004 W – 0.4 W |
| DECT Cell Station frequency range | 1881 MHz – 1898 MHz |
Source: Panasonic KX-TDA30/KX-TDA100/KX-TDA200/KX-TDA600 user manual
All Panasonic KX-TDA200 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Disassembly, diagnostics and part numbers, for repair.
Instruction set, parameters and examples for configuring or programming the device.
Questions answered in these manuals
What software version is required for the KX‑TDA30 model?
The KX‑TDA30 requires PSMPR software file version 5.0000 or later.
From: Panasonic KX-TDA30/KX-TDA100/KX-TDA200/KX-TDA600 user manual
What are the frequency and power limits for the 2.4 GHz cell station?
It operates between 2401 MHz and 2480 MHz with an output power ranging from 0.004 W to 0.4 W.
From: Panasonic KX-TDA30/KX-TDA100/KX-TDA200/KX-TDA600 user manual
What should you do if the PBX emits smoke or an abnormal smell?
Unplug the PBX from the AC outlet immediately and contact an authorized Panasonic Factory Service Centre.
From: Panasonic KX‑TDA50/KX‑TDA100/KX‑TDA200/KX‑TDA600 PC Programming Manual
How can you confirm the software version of the PBX?
Refer to the FAQ section 2.6.1 titled “How do | confirm the software version of the PBX or installed cards?”.
From: Panasonic KX‑TDA50/KX‑TDA100/KX‑TDA200/KX‑TDA600 PC Programming Manual
What software version is required for the KX‑TDA30?
The KX‑TDA30 requires PSMPR Software File Version 4.0000 or later.
From: Panasonic KX-TDA30/KX-TDA100/KX-TDA200/KX-TDA600 Hybrid IP-PBX PT Programming Manual
Which networks can the KX‑TDA100 interwork with?
It can interwork with Analogue PSTN, ISDN basic rate, ISDN primary rate, and ONP 2048 kbit/s digital structured leased lines.
From: Panasonic KX-TDA30/KX-TDA100/KX-TDA200/KX-TDA600 Hybrid IP-PBX PT Programming Manual
