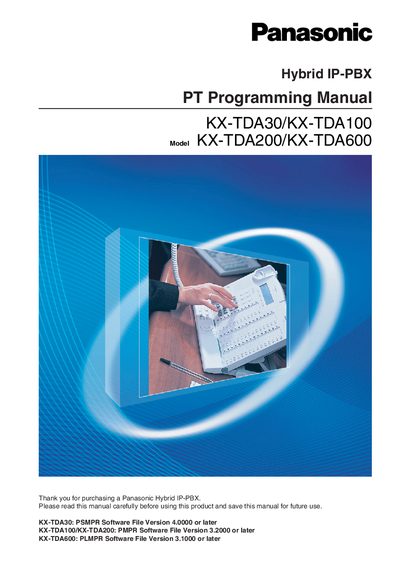

Panasonic KX-TDA30/KX-TDA100/KX-TDA200/KX-TDA600 Hybrid IP-PBX PT Programming Manual

This document is the PT Programming Manual for Panasonic Hybrid IP-PBX, which describes the features and characteristics of the product.

Brand: Panasonic
Category: Telephone
Document type: Programming Manual
Language: English
Pages: 76
File format: PDF
File size: 1.3 MB
Published: 03 May, 2012
Updated: 28 September, 2023
Models: KX-TDA30, KX-TDA100, KX-TDA200, KX-TDA600
MD5 checksum: 01E51374053AF29AE0B3CF6CA66F3BD9
PDF: Panasonic KX-TDA30/KX-TDA100/KX-TDA200/KX-TDA600 Hybrid IP-PBX PT Programming Manual PDF

About this manual

This PT Programming Manual is a reference guide for programming Panasonic Hybrid IP‑PBX systems using a Panasonic proprietary telephone (PT) with display. It explains how to configure system features, extensions, trunks, and other settings.

The manual is divided into three main sections: an Overview of programming concepts, detailed PT Programming instructions, and an Appendix that lists feature‑programming references and related manual links.

What's inside

Overview
PT Programming
Appendix
Feature Programming References
Installation Manual References
Password Security
System Management Programming
Extension Programming
Trunk Programming
SMDR & Maintenance Programming

Specifications

Required software version (KX‑TDA30)	PSMPR 4.0000 or later
Required software version (KX‑TDA100/200)	PMPR 3.2000 or later
Required software version (KX‑TDA600)	PLMPR 3.1000 or later
Supported networks (KX‑TDA30 series)	Analogue PSTN (European) and ISDN basic rate (BRI)
Supported networks (KX‑TDA100/200 series)	PSTN, ISDN BRI, ISDN PRI, ONP 2048 kbit/s leased lines
Supported networks (KX‑TDA600 series)	PSTN, ISDN BRI, ISDN PRI, ONP 2048 kbit/s leased lines

Frequently asked questions

What software version is required for the KX‑TDA30?

The KX‑TDA30 requires PSMPR Software File Version 4.0000 or later.

Which networks can the KX‑TDA100 interwork with?

It can interwork with Analogue PSTN, ISDN basic rate, ISDN primary rate, and ONP 2048 kbit/s digital structured leased lines.

What should be done if the PBX emits smoke or an abnormal smell?

Unplug the PBX from the AC outlet immediately and contact an authorised Panasonic Factory Service Centre.
