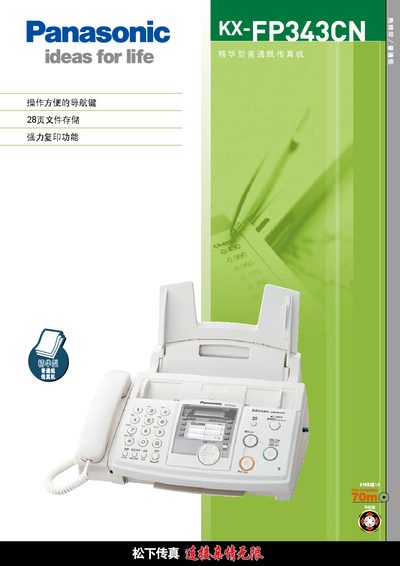

This document introduces a compact and advanced plain paper fax machine with convenient navigation keys, 28-page document storage, and powerful copying functions.
The manual explains the easy‑to‑use navigation keys, LCD display that shows caller information, and functions such as quick scanning and strong printing. It also describes how to store up to 28 pages in memory and manage documents with the built‑in memory functions.
Technical details include the device dimensions, power requirements, scanning resolution, and printing method. The specifications section lists supported fax standards, transmission speed, and consumables like the thermal printing ribbon. This manual is written in Chinese.
| Document size | A4 |
|---|---|
| Scanning resolution | 208 dpi |
| Transmission speed | 9.6 kbps |
| Power supply | 220‑240 V, 50/60 Hz |
| Dimensions (W×H×D) | 185 mm × 355 mm × 275 mm |
| Weight | 3.4 kg |
| Maximum stored pages | 28 pages (up to 25 without ECM) |
| Printing method | Thermal direct |
| Printing ribbon length | 70 m (10 m installed) |
It can store up to 28 pages, with a maximum of 25 pages when ECM is not used.
The scanning resolution is 208 dpi.
It operates on 220‑240 V AC at 50/60 Hz.
It uses a thermal direct printing method.
