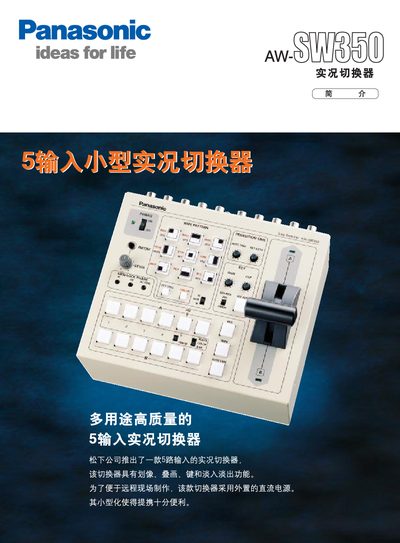

The AW‑SW350 is a compact 5‑input live video switcher designed for field production. It offers key functions such as keying, wipe, fade‑in/out, and multiple transition modes. The unit can operate on an external DC power source, making it portable for on‑site use.
The switcher supports both NTSC and PAL video formats, provides a USB 1.1 port for PC‑based video and graphics input, and includes a variety of video inputs and outputs (composite, Y/C, BNC). It also features built‑in 10‑bit 5‑channel frame sync that can be disabled for external sync lock. This manual is written in Chinese.
| Number of video inputs | 5 |
|---|---|
| Built‑in frame sync | 10‑bit 5‑channel |
| Power supply | DC 12 V, 1.35 A (16 W) |
| Weight | 4.9 lb (2.2 kg) |
| Dimensions (W×H×D) | 21 × 86 × 177 mm |
| Operating temperature | 0 °C to +40 °C |
| Composite video input level | 1.0 Vp‑p, 75 Ω (×5) |
It uses an external DC power supply of 12 V at 1.35 A (16 W).
The switcher provides five video inputs.
Yes, it can be used in either NTSC or PAL video format.
Yes, it includes a USB 1.1 port that can receive video and graphics signals from a PC.
