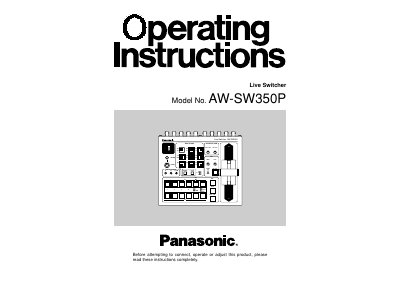

Panasonic AW-SW350P Live Switcher User Manual

AW-SW350 Live Switcher User Manual

Brand: Panasonic
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 23
File format: PDF
File size: 1.2 MB
Published: 09 August, 2012
Updated: 30 September, 2023
Model: AW-SW350
MD5 checksum: 19540FC83B750934E61FBE70ACA4B97D
PDF: Panasonic AW-SW350P Live Switcher User Manual PDF

About this manual

The Panasonic AW-SW350 is a compact live switcher featuring five video inputs, wipe, mix, and key synthesis functions. It includes a built-in frame synchronizer to accept asynchronous signals and supports external synchronization (genlock). The unit allows image transfer from a personal computer via USB and operates on an external 12 V DC power supply.

What's inside

WARNING/CAUTION FOR SAFETY
PREFACE
FEATURES
PRECAUTIONS
MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS
ITOP (CONTROL PANEL)
IREAR PANEL
IMAGE TRANSFER FUNCTION
IFUNCTIONS
ISPECIFICATIONS

Specifications

Video Inputs	Five composite video signal inputs
Power Supply	External 12 V DC
Frame Synchronizer	High-performance 10-bit frame synchronizer

Frequently asked questions

Can the AW-SW350 handle asynchronous signals?

Yes, it accepts the input of asynchronous signals because it has a built-in frame synchronizer.

What is the operating temperature range?

The unit should be used between 32F and 104F.
