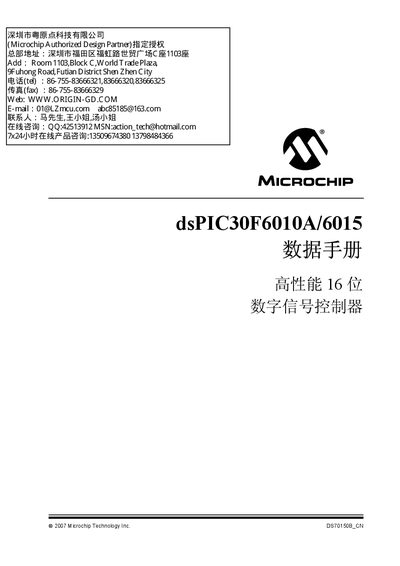

Microchip dsPIC30F6010A/6015 Datasheet
Datasheet 236 pages · 4.2 MB · ZH
This datasheet describes the dsPIC30F6010A and dsPIC30F6015 devices, which combine a 16‑bit MCU core with DSP functionality. It covers the CPU architecture, memory organization, peripheral modules, and electrical characteristics.
The document includes a detailed table of contents, pin‑out diagrams, package information, and a comparison of related dsPIC30F parts, enabling designers to select and implement the appropriate device for motor‑control and signal‑processing applications. This manual is written in Chinese.
MICROCHIP DSPIC30F6010A specifications
| Flash program memory | 144 KB |
|---|---|
| Data RAM | 8 KB |
| Data EEPROM | 4 KB |
| Maximum CPU speed | 30 MIPS |
| Operating voltage range | 2.5 V to 5.5 V |
| Package | 80‑pin TQFP |
All MICROCHIP DSPIC30F6010A documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum CPU speed of the dsPIC30F6010A/6015?
The device can operate up to 30 MIPS.
How much flash memory does the dsPIC30F6010A/6015 provide?
It includes 144 KB of on‑chip flash program memory.
