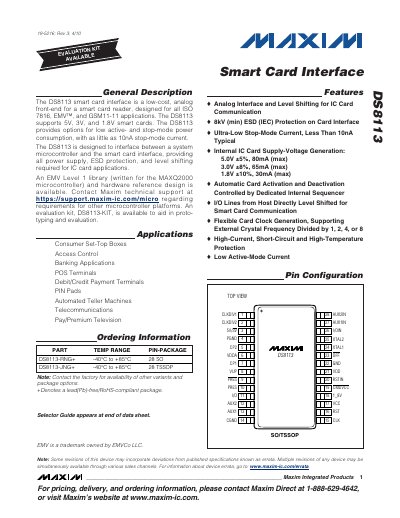

The DS8113 is a smart card interface from Maxim that supports 5V, 3V, and 1.8V smart cards and provides low power consumption modes. It supports ISO 7816, EMV, and GSM11-11 applications.
The DS8113 is an analog front‑end designed to interface a system microcontroller with ISO‑7816, EMV™ and GSM‑11‑11 smart cards. It provides power supply, ESD protection and level shifting for 1.8 V, 3 V and 5 V cards and includes an internal voltage regulator and clock generator.
Key features include ultra‑low stop‑mode current (as low as 10 nA), active‑mode current under 1 mA, selectable clock division, high‑current short‑circuit protection, and a wide operating temperature range. The device is supplied in TSSOP packages and is supported by an EMV Level‑1 software library and a reference evaluation kit.
| Digital Supply Voltage (VDD) range | 2.7 V – 6.0 V |
|---|---|
| Maximum Clock Frequency | 10 MHz |
| Maximum I/O Data‑Line Frequency | 1 MHz |
| Operating Temperature Range | -40 °C to +85 °C |
The device can generate a clock up to 10 MHz.
The I/O, AUX1, and AUX2 data lines operate up to 1 MHz.
