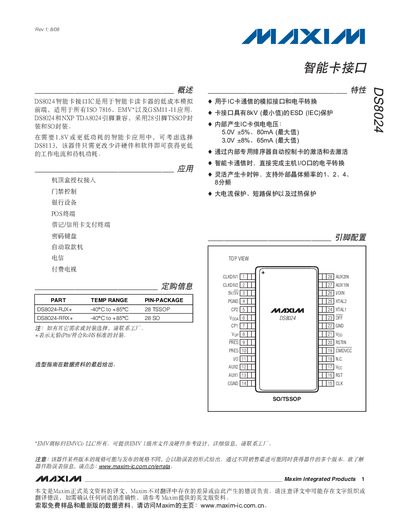

Maxim DS8024 Datasheet
This document details the electrical characteristics, absolute maximum ratings, and recommended DC operating conditions for the Maxim DS8024 smart‑card interface IC. It includes pin‑package information for the 28‑lead TSSOP (DS8024‑RJX+) and 28‑lead SO (DS8024‑RRX+) versions.
The datasheet also describes the functionality of data lines, control pins, and interrupt output, along with timing parameters, voltage ranges, and current consumption for both active and inactive modes. Guidance on PCB layout and grounding is provided to ensure reliable operation. This manual is written in Chinese.
Maxim DS8024 specifications
| Maximum Junction Temperature | +125°C |
|---|---|
| Maximum Power Dissipation (TA = -25°C to +85°C) | 700 mW |
| Storage Temperature Range | -55°C to +150°C |
| Voltage Range on Vpp relative to GND | -0.5 V to +6.5 V |
| Digital Supply Voltage Vpp | 2.6 V to 6.0 V |
Source: Maxim DS8024 Datasheet
All Maxim DS8024 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the recommended operating voltage for the DS8024?
The recommended operating conditions are VDD = +3.3 V and VDDA = +5.0 V (typical at 25 °C).
From: Maxim DS8024 Datasheet
What pin packages are available for the DS8024?
DS8024‑RJX+ is offered in a 28‑lead TSSOP package and DS8024‑RRX+ in a 28‑lead SO package.
From: Maxim DS8024 Datasheet
What is the maximum junction temperature of the DS8024?
The maximum junction temperature is +125 °C.
From: Maxim DS8024 Datasheet
How much power can the DS8024 dissipate at typical ambient temperatures?
It can dissipate up to 700 mW when TA is between –25 °C and +85 °C.
From: Maxim DS8024 Datasheet
