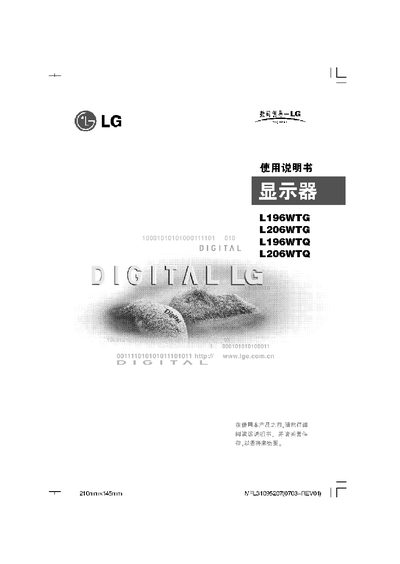

LG L196WTG / L206WTG / L196WTQ / L206WTQ Display User Manual
This manual covers important safety measures for handling the LG display, including precautions against water, fire, and improper mounting. It also details the recommended installation procedure, mounting options, and how to securely attach the display to a wall or stand.
The guide explains how to connect the display to a PC or Mac using the appropriate video cables, describes the control‑panel functions such as zoom and OSD settings, and lists supported screen resolutions. Ergonomic recommendations and repackaging instructions are also included. This manual is written in Japanese.
LG L196WTQ specifications
| Active Display Area | 19 inch diagonal |
|---|---|
| Pixel Pitch | 0.285 mm (H) x 0.285 mm (V) |
| Color Depth | 16.7M |
| Backlight Unit | 4 CCFL |
| Maximum Resolution (Analog) | 1440 x 900 @75Hz |
| Power Consumption (max) | less than 37 W |
All LG L196WTQ documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Disassembly, diagnostics and part numbers, for repair.
Questions answered in these manuals
What safety precautions should be taken before servicing the monitor?
Always unplug the AC power cord, use a plastic screwdriver, wear an ESD wrist strap, and avoid touching high‑voltage components such as the CCFL inverter.
How should the LCD module be removed safely?
Mount the module using the four corner mounting holes, avoid pressing on the panel edges, ground yourself, and handle the backlight with care.
What screen resolutions are supported by the display?
The display supports 1680×1050, 1440×900, 1280×1024, 1024×768 and 800×600 resolutions.
From: LG L196WTG / L206WTG / L196WTQ / L206WTQ Display User Manual
