Key facts
- Brand
- LG
- Model
- 42LD4
- Category
- Television
- Documents
- 4
- Languages
- ZH
- Last added
- 2012-07-13
Start here

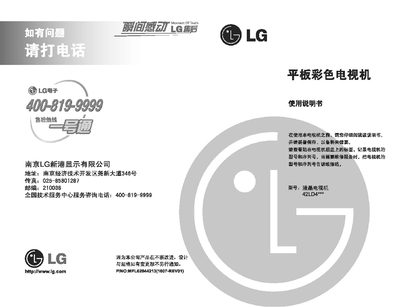

LG 42LD4 Television User Manual
This manual provides safety precautions, installation guidance, and operating instructions for the LG 42LD4 flat‑panel television. It includes important warnings, recommended mounting methods, and basic usage steps.
Technical specifications such as screen size, resolution, power consumption, and environmental limits are listed at the end of the document, helping users understand the TV’s performance characteristics. This manual is written in Chinese.
LG 42LD4 specifications
| Screen diagonal | 108 cm |
|---|---|
| Brightness | >350 cd/m² |
| Contrast ratio | 200:1 |
| Resolution | 1920 × 1080 |
| Power consumption (typical) | 210 W |
| Input voltage | 100‑240 V, 50/60 Hz, 2.1 A |
| Weight (with stand) | 17.3 kg |
| Weight (without stand) | 15.5 kg |
| Operating temperature | 6‑40 °C (32‑104 °F) |
| Storage temperature | -20‑60 °C (-4‑140 °F) |
| Storage humidity | ≤85 % |
| Audio output power | 10 W × 2 |
Source: LG 42LD4 Television User Manual
All LG 42LD4 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- LG 19LE5300 22LE5300 32LD420 42LD420 47LD420 32LD450 37LD450 42LD450 47LD450 37LD450C 42LD450C 47LD450C 32LD520 42LD520 47LD520 55LD520 55LD520C 42LD630 47LD630 55LD630 26LE5300 22LE5500 26LE5500 32LE
- LG 19LE5300 22LE5300 26LE5300 22LE5500 26LE5500 32LE5300 37LE5300 42LE5300 47LE5300 55LE5300 42LE7300 47LE7300 55LE7300 42LE530C 47LE530C 55LE530C 32LD420 42LD420 47LD420 32LD450 37LD450 42LD450 47LD4
- LG 32LD400 42LD400 47LD500 user manual
Questions answered in these manuals
What safety precautions should I follow before using the TV?
Read the Important Safety Measures section, keep the TV away from fire, water, and flammable materials, and ensure proper ventilation.
How can I mount the TV on a wall?
Use a VESA‑compatible mounting bracket as indicated by the VESA standard mentioned in the manual.
