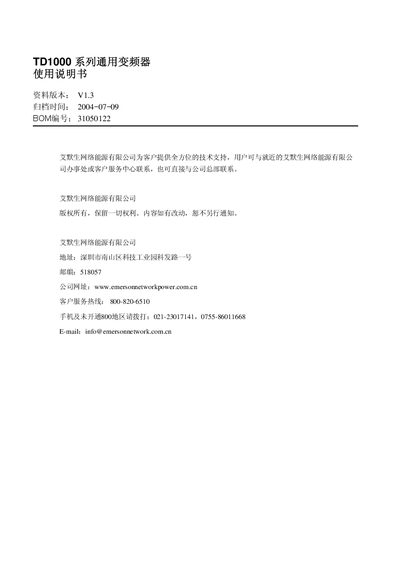

Emerson TD1000 Series Motor Drive User Manual
User Manual 73 pages · 1.2 MB · ZH
This manual covers the TD1000 series motor drive, describing its features, safety precautions, installation procedures, wiring diagrams, and operation methods. It is intended for installers, service personnel, and end users who need to set up and operate the drive safely.
The document includes detailed functional parameter tables, troubleshooting guidance, and warranty information, helping users maintain optimal performance and comply with safety standards. This manual is written in Chinese.
Emerson TD1000 specifications
| Model | TD1000-4T0055G |
|---|---|
| Power Rating | 5.6 kW |
| Input Voltage | 3‑phase AC 380 V < 400 V |
| Input Current | 14.6 A |
| Output Voltage | 3‑phase AC 8.6 kVA |
| Output Current | 13 A |
| Output Frequency Range | 0‑400 Hz |
All Emerson TD1000 documents by type
User Manual 1
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Other documents 1
Questions answered in these manuals
What is the output frequency range of the TD1000 series drive?
The drive provides an output frequency range of 0 to 400 Hz.
