Key facts
- Brand
- Emerson
- Model
- TD900
- Documents
- 4
- Languages
- ZH
- Last added
- 2012-03-12
Start here

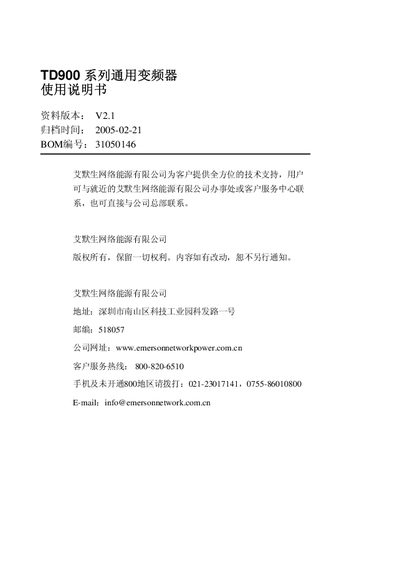

Emerson TD900 Variable Frequency Drive User Manual
This manual covers safety regulations, product overview, installation and wiring procedures, and detailed operation instructions for the TD900 series VFD. It includes functional parameter tables, fault handling, and routine maintenance guidance.
Additional sections describe typical applications, warranty information, and a feedback form for users to report product quality. The document is intended for installers, maintenance personnel, and designers working with the TD900 variable frequency drive. This manual is written in Chinese.
Emerson TD900 specifications
| Rated Power | 2.2 kW |
|---|---|
| Rated Input Voltage | 3‑phase AC 380‑460 V |
| Output Voltage | 3‑phase AC 0‑460 V |
| Output Frequency | 0‑650 Hz |
| Protection IP Rating | IP20 |
| Warranty Period | 18 months |
All Emerson TD900 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How should the motor protection value be adjusted if the motor current is lower than the VFD rating?
Adjust the protection value parameter F021 to match the lower motor current, ensuring safe operation.
What is the IP protection rating of the TD900 series VFD?
The TD900 series VFD has an IP20 protection rating.
What is the IP protection rating of the TD900 VFD?
The drive has an IP20 protection rating when the keyboard panel or display unit is installed.
What is the warranty period for the TD900 VFD?
The warranty covers the drive body for eighteen months from the manufacturing date.
What is the protection level of the TD900 series VFD?
The TD900 series VFD has a protection level of IP20.
From: Emerson TD900 Series Variable Frequency Drive User Manual
What is the recommended maintenance interval?
In typical applications the VFD should be opened for cleaning and inspection every 1–3 months.
From: Emerson TD900 Series Variable Frequency Drive User Manual
