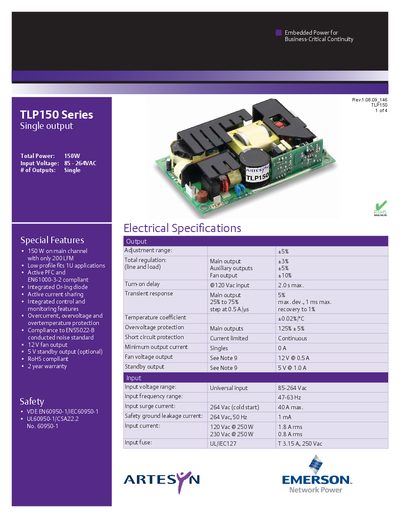

Emerson TLP150 Series User Guide
The TLP150 Series is a 150 W single‑output embedded power module designed for business‑critical continuity. It accepts a universal AC input range and offers optional fan and standby outputs.
The guide covers special features such as active PFC, over‑current and over‑temperature protection, EMC compliance, environmental limits, ordering options, and connector details, along with safety approvals and warranty information.
Emerson TLP150 specifications
| Overall dimensions (inches) | 5.95 x 3.4 x 1.6 |
|---|---|
| Overall dimensions (mm) | 151.13 x 86.36 x 40.64 |
| Bottom mounting inserts | 4 × M3 inserts, max penetration 0.0787 in (2 mm) |
| Side mounting inserts | 4 × M3 inserts, max penetration 0.236 in (6 mm) |
| Cover securing hardware | 4 pan head screws with washers |
All Emerson TLP150 documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What are the overall dimensions of the TLP150CJ enclosure?
The enclosure measures 5.95 × 3.4 × 1.6 inches (151.13 × 86.36 × 40.64 mm).
How many screws are required to secure the cover?
Four pan head screws with washers are used to secure the cover.
What is the input voltage range for the TLP150?
The TLP150 accepts a universal input voltage of 85 VAC to 264 VAC.
What safety approvals does the TLP150 have?
It is approved to UL/CUL UL60950‑1/CSA22.2 and VDE EN60950‑1/IEC60950‑1 standards.
