Key facts
- Brand
- Emerson
- Model
- TD3000
- Documents
- 2
- Languages
- ZH
- Last added
- 2012-04-11
Start here

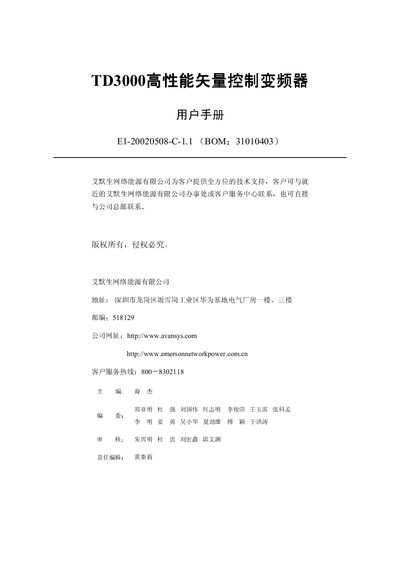

Emerson TD3000 Vector Control Inverter User Manual
User Manual 115 pages · 5 MB · ZH
This manual provides comprehensive instructions for the Emerson TD3000 series vector‑control inverter. It includes safety guidelines, model identification, component descriptions, wiring diagrams, and step‑by‑step installation procedures.
The document also details operating functions, technical specifications, troubleshooting methods, and warranty information to help users maintain optimal performance and safety of the inverter. This manual is written in Chinese.
Emerson TD3000 specifications
| Power Rating | 15 kW |
|---|---|
| Input Current | 35 A |
| Output Current | 32 A |
| Output Voltage Range | 380 V‑7400 V |
All Emerson TD3000 documents by type
User Manual 2
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the warranty period for the TD3000 inverter?
The warranty period is 18 months from the manufacturing date, provided the unit is used under normal conditions.
What is the rated power of the TD3000?
The TD3000 is rated at 15 kW.
What input voltage does the TD3000 accept?
It accepts 380 V or 400 V AC input.
