Start here

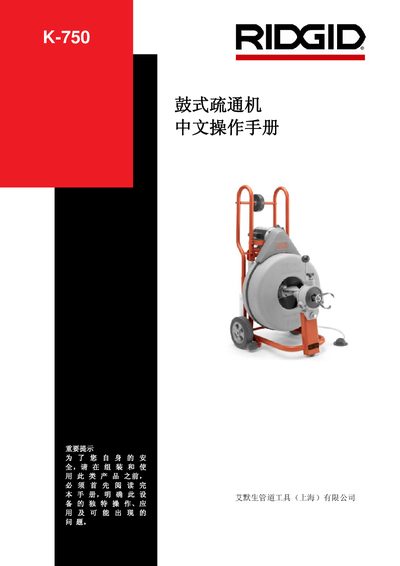

Emerson K-750 Drum Dredging Machine Operation Manual
The manual begins with extensive safety warnings, covering workplace safety, electrical safety and personal protective equipment to ensure safe use of the K-750 drum dredging machine. It stresses reading all safety sections before assembly or operation.
The remainder of the document details product overview, technical specifications, assembly procedures, operation steps (automatic and manual feed), optional accessories, routine maintenance, troubleshooting, and warranty information, helping users install, operate and service the machine correctly. This manual is written in Chinese.
Emerson K-750 specifications
| Pipe diameter range | 3" to 8" |
|---|---|
| Cable (steel rope) drum capacity | 3/4"×105 ft and 5/8"×125 ft |
| Rope rotation speed | 200 RPM |
| Motor power | 1/2 HP, 1725 RPM |
| Voltage | 115V / 230V, 50‑60 Hz |
| Current | 6.5 A |
| Weight (machine only) | 95 lb (43 kg) |
| Dimensions | Width 21", Length 26", Height 43" |
Source: Emerson K-750 Drum Dredging Machine Operation Manual
All Emerson K-750 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What voltage options are available for the K-750?
The machine can be powered from either 115 V or 230 V, 50 Hz/60 Hz single‑phase AC.
How should the K-750 be lubricated for maintenance?
After each use, clean the machine and apply light oil to all exposed moving and rotating parts, especially the automatic feed mechanism, to ensure long‑life operation.
What safety measures should be taken before operating the K-750 drum dredging machine?
Read all safety instructions, keep the work area clean and well‑lit, avoid flammable environments, ensure the tool is properly grounded, wear safety glasses and protective footwear, and never operate the machine while wet.
From: Ridgid K-750 Drum Dredging Machine Chinese Operation Manual
How do you assemble the handle and belt guard on the K-750?
Insert the handle assembly into the machine frame, then secure it with two belt‑guard bolts. Adjust the gap between the belt guard and the cable drum to about 1/4" (no more than 1/2") before tightening the bolts.
From: Ridgid K-750 Drum Dredging Machine Chinese Operation Manual
