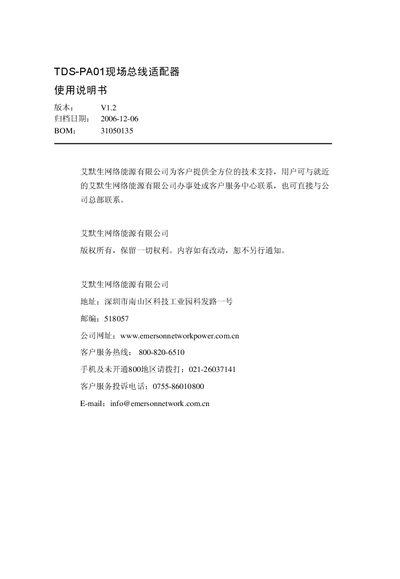

Emerson TDS-PA01 Fieldbus Adapter User Manual
The Emerson TDS-PA01 fieldbus adapter connects Emerson variable frequency drives to a PROFIBUS network as a smart slave device. The manual provides safety guidelines, installation steps, wiring diagrams, and parameter configuration for proper operation.
Key sections include product introduction, installation and wiring, service access point configuration, communication parameter settings for various drive models, fault handling procedures, and warranty information. This manual is written in Chinese.
Emerson TDS-PA01 specifications
| Supported PROFIBUS protocol | PROFIBUS-DP |
|---|---|
| Maximum stations without repeater | 32 |
| Maximum stations with repeater | 127 |
All Emerson TDS-PA01 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the warranty period for the TDS-PA01 adapter?
The warranty period is eighteen months from the date of purchase.
How many stations can be connected on a PROFIBUS bus without a repeater?
Up to 32 stations can be connected without using a repeater.
What do the three status LEDs on the TDS-PA01 indicate?
The adapter has LEDs labeled RUN, RS485, and PROFIBUS that show power status, RS485 communication status, and PROFIBUS communication status respectively.
Which Emerson inverter series are compatible with the TDS-PA01 adapter?
The TDS-PA01 can be used with the TD1000, TD2000, TD2100, and TD3000 series inverters.
What is the operating temperature range for the TDS-PA01?
The adapter can operate from –10 °C up to 40 °C.
How many stations can be connected on a PROFIBUS network without repeaters?
Up to 32 stations can be connected without using repeaters.
