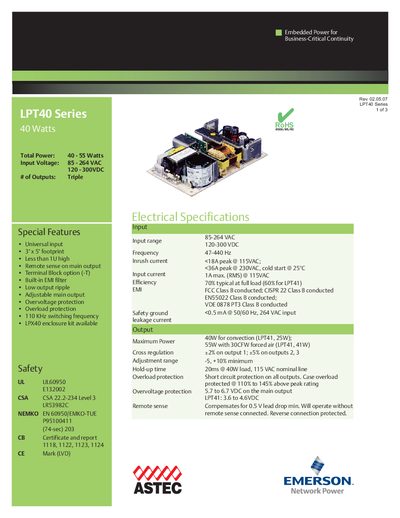

Emerson LPT40 Series Power Supply Datasheet
The LPT40 Series provides triple output rails in a compact 3" × 5" footprint that is less than 1U high. It features universal input voltage (85‑264 VAC or 120‑300 VDC), remote sense on the main output, built‑in EMI filtering, overvoltage and overload protection, and a 110 kHz switching frequency.
Designed for business‑critical continuity, the unit meets UL60950, CSA 22.2‑234 Level 3 and CE Mark safety standards, operates from 0 °C to 50 °C ambient (with derating), and has an MTBF of over 550,000 hours. Mechanical drawings, connector pin assignments, and ordering information are included for easy integration.
Emerson LPT 40 specifications
| Total Power | 40 - 55 Watts |
|---|---|
| Input Voltage | 85 - 264 VAC, 120 - 300 VDC |
| Number of Outputs | Triple |
| Switching Frequency | 110 kHz |
| Efficiency | 70% typical at full load |
| MTBF | >550,000 hours |
| Weight | 0.5 lbs (0.23 kg) |
| Footprint | 3" x 5" (less than 1U high) |
| Remote Sense | Enabled on main output |
| Operating Temperature | 0 °C to 50 °C ambient |
| Storage Temperature | -40 °C to 85 °C |
All Emerson LPT 40 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the input voltage range of the LPT40 Series?
The LPT40 Series accepts 85‑264 VAC or 120‑300 VDC input voltage.
How many output rails does the LPT40 Series provide?
It provides three (triple) output rails.
What is the input voltage range for the LPT 40 series?
The LPT 40 accepts 85‑264 VAC or 120‑370 VDC input.
How many outputs does the LPT 40 provide?
It provides three (triple) outputs.
