Dytran 3225E2 Miniature Charge Mode Accelerometer Manual
The Dytran 3225E2 is a miniature charge‑mode accelerometer designed for precise acceleration measurement. It features an anodized aluminum isolator cup, titanium case, and a 3‑56 threaded coaxial connector that mates only with Dytran cable model 6003AXX.

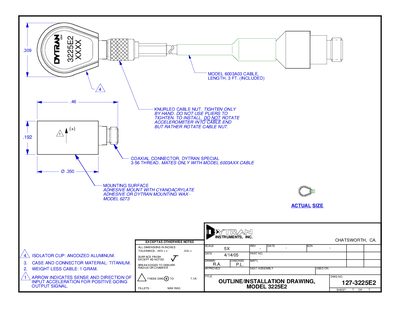

The manual includes a full set of specifications, mounting provisions, electrical characteristics, and a list of supplied accessories such as a removal tool (Model 6591A) and small petro wax (Model 6298). Installation drawings, performance data, and operating instructions are also provided.
Dytran 3225E specifications
| Weight | 0.6 grams |
|---|---|
| Size (Diameter x Length x Height) | 0.31 x 0.46 x 0.19 inches |
| Sensitivity | +2096 |
| Frequency Response | +10 % |
| Temperature Range | -60 to 350 °F |
| Connector Type | 3‑56 jack, titanium |
| Supplied Accessories | Model 6591A removal tool, Model 6298 small petro wax |
Source: Dytran 3225E2 Miniature Charge Mode Accelerometer Manual
All Dytran 3225E documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the weight of the Dytran 3225E2 accelerometer?
The 3225E2 weighs 0.6 grams.
From: Dytran 3225E2 Miniature Charge Mode Accelerometer Manual
What are the dimensions of the 3225E2?
Its size is 0.31 × 0.46 × 0.19 inches (diameter × length × height).
From: Dytran 3225E2 Miniature Charge Mode Accelerometer Manual
What type of connector does the 3225E1 accelerometer use?
It uses a radially mounted 3‑56 jack connector that mates only with Dytran cable model 6003AXX.
From: Dytran 3225E1 Miniature Charge Mode Accelerometer Handbook
What is the operating temperature range of the 3225E1?
The device operates from –60 °F to 350 °F.
From: Dytran 3225E1 Miniature Charge Mode Accelerometer Handbook
What is the weight of the Dytran 3225E accelerometer?
The 3225E weighs 0.6 grams.
From: Dytran 3225E Miniature Charge Mode Accelerometer Datasheet
What are the dimensions of the Dytran 3225E?
Its size is 0.25 × 0.36 × 0.150 inches (diameter × length × height).
