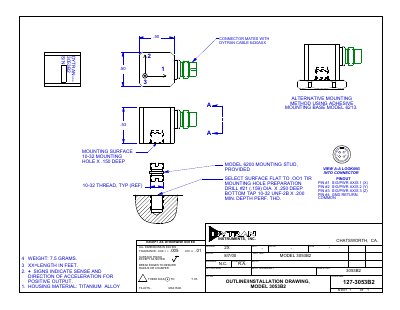

Instrument Instruments 3053B2 Triaxial Accelerometer Specifications
This document provides the full technical specifications for the Instrument Instruments 3053B2 triaxial accelerometer. It includes physical dimensions, weight, housing material, and mounting options, as well as performance parameters such as sensitivity, frequency response, and natural frequency.
Environmental limits, electrical characteristics, and connector pinout are also listed, giving engineers the data needed for integration, power supply design, and signal conditioning.
Dytran 3053B specifications
| Weight | 7.5 grams |
|---|---|
| Size (H × W × D) | 0.53 × 0.50 × 0.50 inches |
| Mounting | 10-32 tapped hole in base |
| Housing material | Titanium alloy |
| Sensitivity | -10 % to +15 % |
| Full‑scale range | ±500 g (10.0 mV/g) |
| Frequency response | 2 – 5000 Hz |
| Natural frequency | 30 kHz |
| Electrical noise | 0.007 g RMS |
| Linearity | 1 % of full scale |
| Transverse sensitivity (max) | 5 % |
| Temperature range | -60 °F to +250 °F |
| Maximum vibration | ±600 g |
| Maximum shock | 5000 g |
| Supply voltage range (each axis) | +18 V to +30 V DC |
| Output impedance (typ.) | 100 Ω |
| Output bias voltage (nom.) | +10 V DC |
| Discharge time constant (nom.) | 0.5 s |
| Ground isolation (min.) | 10 MΩ |
Source: Instrument Instruments 3053B2 Triaxial Accelerometer Specifications
All Dytran 3053B documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What mounting method does the 3053B2 accelerometer use?
It mounts with a 10‑32 tapped hole in the base, and an adhesive mounting base is also offered as an alternative.
From: Instrument Instruments 3053B2 Triaxial Accelerometer Specifications
What is the operating temperature range of the 3053B2?
The device operates from –60 °F up to +250 °F.
From: Instrument Instruments 3053B2 Triaxial Accelerometer Specifications
What is the connector pinout for the Dytran 3053B1 accelerometer?
The device uses a 4‑pin connector: pin 1 is signal/power for axis 1, pin 2 for axis 2, pin 3 for axis 3, and pin 4 is the ground return.
From: Dytran 3053B1 Triaxial Accelerometer Outline Installation Drawing
What are the environmental limits of the 3053B1 accelerometer?
It can withstand up to ±600 G vibration, 5000 G shock, and operates from –60 °C to +250 °C with a hermetic seal.
From: Dytran 3053B1 Triaxial Accelerometer Outline Installation Drawing
What type of connector does the Dytran 3053B use?
It uses a 4‑pin connector that mates with a Dytran cable assembly model 6430AXX.
What is the full‑scale measurement range of each axis?
Each axis measures up to ±500 G full scale.
