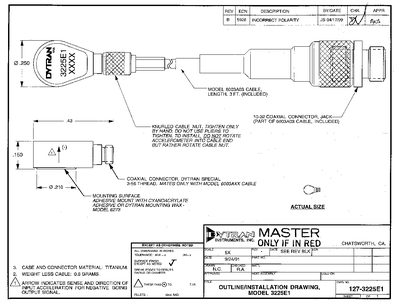

This product is a 3225E1 miniature charge mode accelerometer, with a weight of 0.6 grams and a size of 0.25 x 0.43 x .150 inches.
The Dytran 3225E1 is a miniature charge‑mode accelerometer featuring a titanium case, piezoceramic planar shear sensing element, and a flat mounting surface for adhesive or wax mounting. It uses a radially mounted 3‑56 jack connector that mates only with Dytran cable model 6003AXX.
The handbook provides full specifications including weight (0.6 g), dimensions (0.25 × 0.43 × 0.150 in), sensitivity (+20 % 18 Pa), frequency response up to 10 kHz, and environmental limits such as -60 °F to 350 °F temperature range, 400 g RMS vibration, and 5000 g peak shock. Electrical details note a negative output polarity for acceleration toward the top and grounded case. Supplied accessories include an installation/removal wrench (model 6591A) and small petro wax (model 6298).
| Weight | 0.6 grams |
|---|---|
| Size (Diameter × Length × Height) | 0.25 × 0.43 × 0.150 inches |
| Case material | Titanium |
| Sensing element type | Piezoceramic planar shear |
| Sensitivity | +20% (18 Pa) |
| Frequency response | up to 10,000 Hz |
| Mounted resonant frequency | 40 kHz (nominal) |
| Transverse sensitivity | max 5 % |
| Strain sensitivity | 0.005 g per microstrain @ 250/10 |
| Maximum vibration | 400 g RMS |
| Maximum shock | 5000 g peak |
| Temperature range | -60 °F to 350 °F |
| Output signal polarity | Negative for acceleration toward top |
| Case grounding | Grounded |
| Connector type | 3‑56 jack, radially mounted |
It uses a radially mounted 3‑56 jack connector that mates only with Dytran cable model 6003AXX.
The device operates from –60 °F to 350 °F.
A model 6591A installation/removal wrench and a model 6298 small petro wax are supplied.
