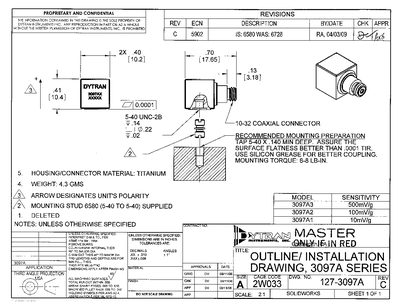

Dytran 3097A Series Accelerometer Datasheet
This datasheet covers the Dytran 3097A series miniature IEPE accelerometers, presenting key mechanical, electrical, and environmental specifications. It includes part numbers 3097A1, 3097A2, and 3097A3, each with distinct sensitivity levels.
The document details recommended mounting procedures, torque values, connector types, and material construction, as well as performance data such as frequency response, noise levels, and maximum vibration and shock limits. All dimensions are given in inches with metric equivalents in brackets.
Dytran 3097A Series specifications
| Sensitivity (3097A3) | 500 mV/g |
|---|---|
| Sensitivity (3097A2) | 100 mV/g |
| Sensitivity (3097A1) | 10 mV/g |
| Weight | 4.3 g |
| Housing/Connector Material | Titanium |
| Connector Type | 10‑32 coaxial |
| Mounting Torque | 6‑8 lb‑in |
All Dytran 3097A Series documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the recommended mounting torque for the 3097 series accelerometer?
The recommended mounting torque is 6‑8 lb‑in.
What sensitivity options are available for the 3097A series?
The series offers three sensitivities: 10 mV/g (3097A1), 100 mV/g (3097A2), and 500 mV/g (3097A3).
What is the sensitivity of the 3097A2 model?
The 3097A2 model has a sensitivity of 100 mV per g.
What mounting stud is supplied with the 3097A series?
A Model 6580 mounting stud (5‑40 to 5‑40) is supplied.
What is the sensitivity of the 3097A3 accelerometer?
The 3097A3 model has a sensitivity of 500 mV/g.
From: Dytran 3097A Series Accelerometer Product Specification
What temperature range can the 3097A series operate in?
The series operates from –60 °F to 200 °F.
From: Dytran 3097A Series Accelerometer Product Specification
