Key facts
- Brand
- Dytran
- Model
- 7600B1
- Industry
- Industrial
- Documents
- 5
- Languages
- EN
- Last added
- 2012-04-12
Start here

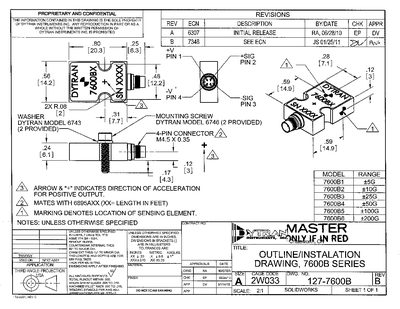

DYTRAN 7600B1 OUTLINE/INSTALLATION DRAWING(3)
The Dytran 7600B series consists of variable‑capacitance accelerometers offering a range of sensitivities and output options. This document provides performance specifications, physical dimensions, electrical characteristics, and environmental limits for each model in the series.
Key information includes weight, size, connector type, input range, sensitivity, operating voltage, temperature range, and supplied mounting accessories. The drawing also notes tolerances, machining details, and certification notes for proper installation.
Dytran 7600B1 specifications
| Weight | 0.4 oz (3.6 grams) |
|---|---|
| Size (L×W×H) | 0.80 × 0.56 × 0.23 in (20.3 × 14.2 × 5.8 mm) |
| Connector Type | 4‑PIN, M4.5 × 0.35 mm thread |
| Operating Voltage | +5 V |
| Operating Temperature Range | -40 °F to +176 °F |
| Output Common Mode Voltage | + VDC |
All Dytran 7600B1 documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the input range for model 7600B1?
Model 7600B1 has an input range of 0‑600 g.
What is the operating voltage for model 7600B1?
Model 7600B1 operates at +5 V.
What mounting hardware is supplied with the Dytran 7600B1 accelerometer?
Two mounting screws (model #6746) and two mounting washers (model #6743) are supplied.
From: Dytran 7600B1 Variable Capacitance Accelerometer Installation Drawing
What is the excitation voltage range for the 7600B series accelerometers?
The excitation voltage range is 6 V to 22 V.
From: Dytran 7600B1 Variable Capacitance Accelerometer Installation Drawing
What mounting hardware is supplied with the Dytran 7600B1?
The package includes two mounting screws (model #6746) and two mounting washers (model #6743).
What is the input range for the 7600B1 accelerometer?
The input range is 15 g.
