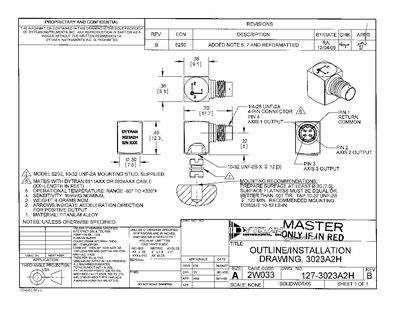

Dytran 3023A2H Accelerometer Datasheet
Datasheet 2 pages · 224 KB · EN
This document presents the technical specifications of the Dytran 3023A2H triaxial IEPE accelerometer, including sensitivity, temperature range, weight, and material. It also lists the mounting stud model, connector details, and recommended torque for installation.
Performance data such as frequency response, natural frequency, electrical noise, supply current, and environmental limits (shock, vibration, temperature) are included, along with dimensional tolerances and surface preparation guidelines.
Dytran 3023A2 specifications
| Sensitivity | 10 mV/g nominal |
|---|---|
| Operational Temperature Range | -60°F to +320°F |
| Weight | 4 grams |
| Material | Titanium alloy |
| Mounting Stud | Model 6200, 10-32 UNF-2A |
| Frequency Response (3‑Axis) | 2 to 10,000 Hz |
| Natural Frequency (1‑Axis) | 20 kHz |
| Equivalent Electrical Noise | 0.007 rms |
| Supply Current Range | 2 to 20 mA |
| Maximum Shock Rating | 5000 g |
| Maximum Vibration Rating | 2600 g |
| Output Impedance | 100 Ω (typical) |
