The 3225E3 is a MEMS accelerometer from Dytran, which is lightweight, compact, waterproof, and has a removable cable.
This handbook describes the Dytran 3225E3 charge‑mode accelerometer, including its physical dimensions, electrical output, and environmental limits. It also outlines recommended mounting methods and the accessories supplied with the instrument.
Key specifications such as weight (0.6 grams), titanium case material, piezoceramic sensing element, frequency response up to 10 kHz, and a temperature range of –60 °F to +350 °F are listed. The document also details the 3‑56 UNF‑2A coaxial connector that mates only with Dytran cable model 6003XX and the recommended cyanoacrylate adhesive for mounting.
| Weight | 0.6 grams |
|---|---|
| Case Material | Titanium |
| Sensing Element Type | Piezoceramic |
| Frequency Response | 0 to 10,000 Hz |
| Amplitude Non‑Linearity | 2 % F.S MAX |
| Temperature Range | -60 °F to +350 °F |
| Output Signal Polarity | Positive |
| Connector Type | 3‑56 UNF‑2A coaxial |
| Recommended Mounting Adhesive | Cyanoacrylate |

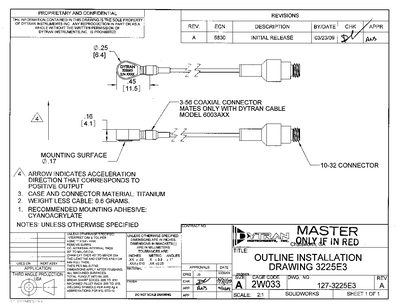

It uses a 3‑56 UNF‑2A coaxial connector that mates only with Dytran cable model 6003XX.
Cyanoacrylate adhesive is recommended for mounting the sensor.
The sensor operates from –60 °F to +350 °F.
Supplied accessories include a Model 6591A installation wrench, Model 6298 mounting wax, Model 6003A03 removable cable, and an ISO 17025 calibration certificate.
