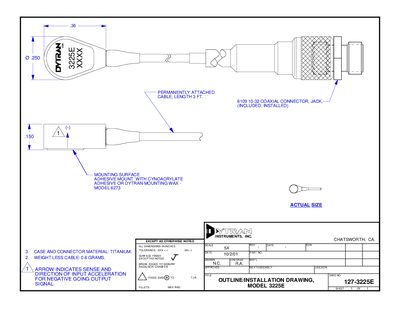

The document describes the specifications and characteristics of the 3225E miniature charge mode accelerometer produced by XXXX in Chatsworth, CA. The accelerometer is made of titanium material, weighs only 0.6 grams, and has dimensions of 0.25 x 0.36 x 0.150 inches. It is suitable for adhesive mounting. The sensitivity is 1.8 pC/G, and the frequency response range is 10Hz to 10kHz. The accelerometer has a 10-32 coaxial connector and comes with a fixed 3-foot cable.
The 3225E accelerometer is a compact charge‑mode sensor featuring a titanium case and a permanently attached 3 ft coaxial cable. It is designed for flat mounting with adhesive or Dytran mounting wax and includes a 10‑32 jack for signal output.
The datasheet provides physical dimensions, performance characteristics such as sensitivity and frequency response, and environmental limits. Electrical parameters like capacitance and insulation resistance are listed, along with supplied accessories such as an installation wrench and mounting wax.
| Weight | 0.6 grams |
|---|---|
| Size (Diameter x Length x Height) | 0.25 x 0.36 x 0.150 inches |
| Case material | Titanium |
| Connector type | Coaxial 10‑32 jack with 3 ft cable |
| Sensing element | Planar shear piezoceramic |
| Sensitivity | +20 % (at 100 Hz, 1 g RMS) |
| Insulation resistance | ≥5 × 10 MΩ |
The 3225E weighs 0.6 grams.
Its size is 0.25 × 0.36 × 0.150 inches (diameter × length × height).
The case is made of titanium.
It uses a coaxial 10‑32 jack with a permanently attached 3 ft cable.
