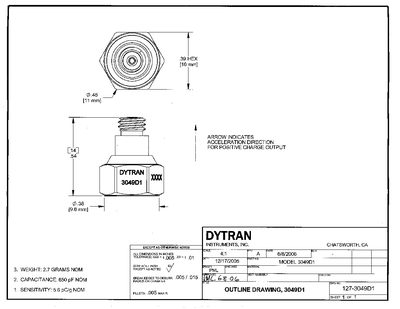

Dytran 3049D/3049D1 Specifications
Datasheet 2 pages · 176 KB · EN
The Dytran 3049D and 3049D1 are compact accelerometers designed for high‑frequency vibration measurement. They are available in a hex housing with either an integral stud (3049D) or adhesive mount (3049D1).
Key specifications include a nominal sensitivity of 5.8 pC/g, a frequency range up to 8 kHz, resonant frequency of 40 kHz, and operation from –100 °F to +350 °F. The devices feature a titanium‑alloy housing, hermetic glass‑to‑metal seal, and a positive‑polarity output signal.
Dytran 3049D1 specifications
| Weight (3049D1) | 3.0 grams |
|---|---|
| Size (hex) | .39 × .54 inches (10 mm × 13.7 mm) |
| Sensitivity (3049D1) | 5.8 pC/g (nominal) |
| Frequency Range | +5 % to 8 kHz |
| Resonant Frequency | 40 kHz |
| Capacitance | 650 pF (nominal) |
| Temperature Range | -100 °F to +350 °F |
| Housing Material | Titanium alloy |
All Dytran 3049D1 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the nominal sensitivity of the Dytran 3049D1 accelerometer?
The nominal sensitivity is 5.8 pC/g.
What temperature range can the 3049D/3049D1 operate in?
It can operate from –100 °F to +350 °F.
What is the weight of the Dytran 3049D1 sensor?
The 3049D1 sensor weighs 3.0 grams.
What is the sensitivity of the Dytran 3049D1 accelerometer?
Its nominal sensitivity is 5.8 pC per g.
