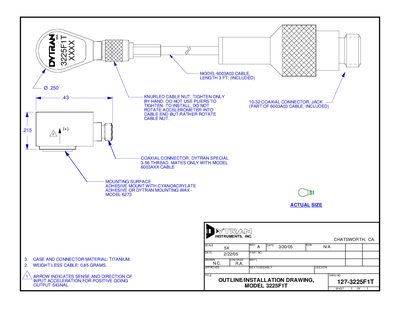

Dytran 3225F1T Miniature LIVM Accelerometer Handbook
The 3225F1T is a miniature LIVM accelerometer with a titanium case and a quartz planar‑shear sensing element. It features a 3‑56 coaxial jack that mates only with Dytran cable model 6003AXX and can be mounted on a flat surface using cyanoacrylate adhesive or Dytran mounting wax (model 6273). The handbook includes installation guidance, connector details, and safety notes.
Technical specifications are listed, including a weight of 0.85 g, dimensions of 0.25 × 0.43 × 0.215 in, sensitivity of 10 mV/G, a range of ±500 G, frequency response from 1.6 Hz to 10 kHz, and a temperature operating range of –60 °F to 250 °F. Electrical characteristics such as supply voltage, bias, and output impedance are also provided.
Dytran 3225F1 specifications
| Weight | 0.85 grams |
|---|---|
| Size (Diameter × Length × Height) | 0.25 × 0.43 × 0.215 inches |
| Mounting provision | Flat mounting surface for adhesive mount |
| Connector type | 3‑56 jack (coaxial) |
| Case material | Titanium |
| Sensing element type | Quartz, planar shear |
| Sensitivity | 10.0 mV/G |
| Range (full scale) | ±500 G |
| Frequency response | 1.6 Hz to 10 kHz |
| Temperature range | -60 °F to 250 °F |
Source: Dytran 3225F1T Miniature LIVM Accelerometer Handbook
All Dytran 3225F1 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What mounting method is recommended for the 3225F1T accelerometer?
Use a flat mounting surface and secure the sensor with cyanoacrylate adhesive or Dytran mounting wax (model 6273).
Which connector does the 3225F1T use and what cable is compatible?
It uses a 3‑56 jack coaxial connector that mates only with Dytran cable model 6003AXX.
What is the weight of the Dytran 3225F1 accelerometer?
The device weighs 0.6 grams.
From: DYTRAN 5X Data Sheet
Which connector type does the 3225F1 use?
It uses a radially mounted 3‑56 jack connector.
From: DYTRAN 5X Data Sheet
