Datalogic QD2100 Manuals

ManualLib has 3 documents for the Datalogic QD2100 (Scanner): 2 user manuals, 1 product leaflet. Every file can be read online or downloaded as a PDF for free.

User Manual 2Product Leaflet 1

Key facts

Model
QD2100
Category
Scanner
Industry
Electronics
Documents
3
Languages
EN · ZH
Last added
2026-11-09

Start here

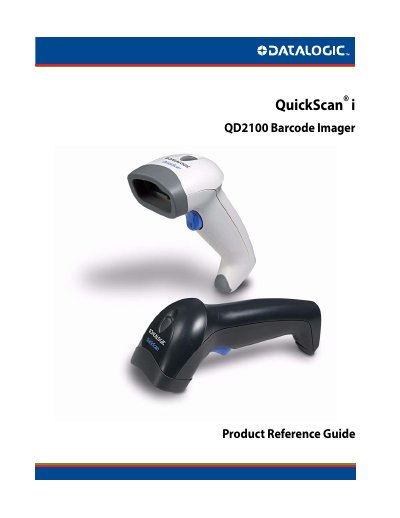

Datalogic QuickScan i QD2100 Barcode Imager Product Reference Guide

Datalogic QuickScan i QD2100 Barcode Imager Product Reference Guide

User Manual 320 pages · 1.2 MB · EN

This document serves as a Product Reference Guide for the Datalogic QuickScan i QD2100 Barcode Imager. It provides detailed instructions on getting started with the device, including unpacking and setting up the interface cable. The guide explains how to use programming barcodes to configure various features and reset the device to standard defaults.

The manual details the configuration of multiple interfaces, including RS-232, USB, Keyboard, and IBM 46XX, along with specific settings for each. It also covers general features such as LED and beeper indicators, scanning modes, and timeouts. A significant portion is dedicated to data editing capabilities and a comprehensive list of supported symbologies, such as UPC, EAN, Code 39, and Code 128, including their specific enable/disable and check character settings.

Read online

Datalogic QD2100 specifications

Operating Current340 mA @ 5 VDC
Standby Current190 mA @ 5 VDC
Operating Temperature0 to 50 °C
Storage Temperature-40 to 70 °C
Water and Dust ResistanceIP42
Drop Resistance1.5 meters / 4.9 feet
Dimensions17.0 x 7.1 x 6.6 cm
Weight121.9 g / 4.3 oz

Source: Datalogic QuickScan i QD2100 Barcode Reader Product Brochure

All Datalogic QD2100 documents by type

User Manual 2

Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.

Questions answered in these manuals

Who manufactures the QuickScan i QD2100?

The reader is a Datalogic product, and the documentation is copyrighted by Datalogic, Inc. from 2008 - 2013.

From: Datalogic QuickScan i QD2100 Bar Code Reader Quick Reference Guide

What license covers the software in the reader?

Datalogic grants a non-exclusive, non-transferable, perpetual license to use the embedded software solely on the Datalogic product for internal business purposes.

From: Datalogic QuickScan i QD2100 Bar Code Reader Quick Reference Guide

Does the QD2100 have a visual feedback feature?

Yes, it features Datalogic's patented 'Green Spot' technology for direct read confirmation.

From: Datalogic QuickScan i QD2100 Barcode Reader Product Brochure

Can the scanner window be replaced easily?

Yes, it is designed to allow replacement of damaged windows without sending the unit back for repair.

From: Datalogic QuickScan i QD2100 Barcode Reader Product Brochure

What is the Datalogic QuickScan i QD2100?

It is a barcode imager.

From: Datalogic QuickScan i QD2100 Barcode Imager Product Reference Guide

Where can I find contact information for technical support?

You can reach Datalogic Scanning, Inc. at (541) 683-5700.

From: Datalogic QuickScan i QD2100 Barcode Imager Product Reference Guide
