Start here

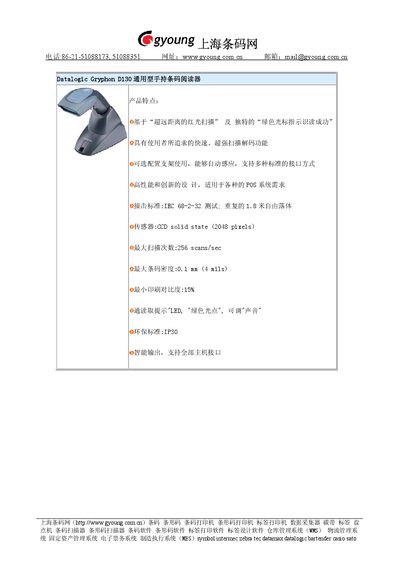

Datalogic Gryphon D130 Handheld Barcode Reader User Manual
The Gryphon D130 is a general‑purpose handheld barcode reader that uses ultra‑long‑range red laser scanning and a unique green cursor to indicate successful reads. It offers fast, high‑performance decoding and optional bracket mounting with automatic sensing and multiple standard interface options.
The device meets IEC 68‑2‑32 impact standards (1.8 m drop), is rated IP30, and includes a CCD solid‑state sensor with 2048 pixels. It supports up to 256 scans per second, a maximum barcode density of 0.1 mm, a minimum print contrast of 15 %, and provides six smart outputs with adjustable LED, green light, and sound indicators. This manual is written in Chinese.
Datalogic Gryphon d130 specifications
| Sensor | CCD (3648 pixels) |
|---|---|
| Scanning speed | 270 scans/second |
| Maximum scan density | 0.076 mm (3 mil) |
| Print contrast | 15 % |
| Scanning angle | ±80° horizontal, ±65° vertical, ±35° rotation |
| Interfaces | PS/2 (keyboard emulation), RS‑232, USB |
| Power requirement | 5 VDC ±5 % |
| Current consumption | 250 mA (typical) up to 330 mA |
| Operating temperature | 0 °C to +55 °C |
| Weight | 180 g |
Source: Datalogic Gryphon d130 Barcode Scanner Product Leaflet
All Datalogic Gryphon d130 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What interfaces does the Gryphon d130 support?
It supports PS/2 keyboard emulation (Wedge), RS‑232 serial, and USB connections.
From: Datalogic Gryphon d130 Barcode Scanner Product Leaflet
What is the scanning speed of the Gryphon d130?
The scanner operates at 270 scans per second.
From: Datalogic Gryphon d130 Barcode Scanner Product Leaflet
What scanning technology does the Gryphon D130 use?
It uses ultra‑long‑range red laser scanning with a green cursor indicator to show successful reads.
From: Datalogic Gryphon D130 Handheld Barcode Reader User Manual
What is the maximum scan rate of the Gryphon D130?
The device can perform up to 256 scans per second.
From: Datalogic Gryphon D130 Handheld Barcode Reader User Manual
