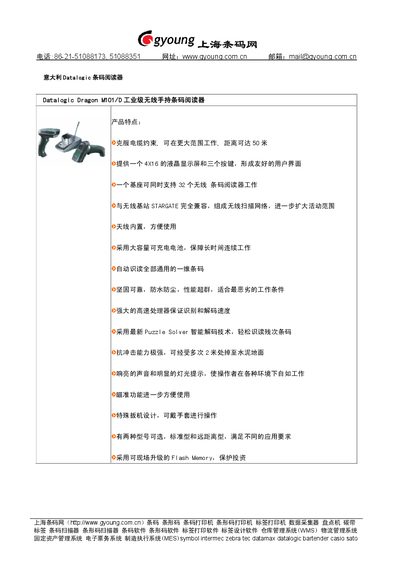

Italy Datalogic bar code reader Datalogic Dragon M101/D industrial Wireless hand-held Manual
The Dragon MI01AD is an industrial‑grade wireless handheld barcode reader designed for rugged environments. It offers up to 50 m wireless range, a 4×16 LCD, three user keys, and a built‑in antenna for easy operation, while a single base can support up to 32 readers.
This user manual describes the device’s features, installation with the STARGATE base station, battery handling, impact resistance, and operation modes, including standard and long‑range models. It also outlines maintenance and upgrade procedures using flash memory. This manual is written in Chinese.
Datalogic Dragon M101 specifications
| Maximum wireless range | 50 m |
|---|---|
| Display | 4×16 LCD |
| Supported readers per base | 32 |
| Base station compatibility | STARGATE |
| Antenna | Built‑in |
| Battery type | Large capacity rechargeable |
| Impact resistance | Drop from 2 m onto concrete |
| Model variants | Standard and long‑range |
Source: Italy Datalogic bar code reader Datalogic Dragon M101/D industrial Wireless hand-held Manual
All Datalogic Dragon M101 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum wireless range of the Dragon MI01AD?
The device can operate up to 50 meters away from the base station.
From: Italy Datalogic bar code reader Datalogic Dragon M101/D industrial Wireless hand-held Manual
How many readers can a single base station support?
One base can simultaneously support 32 wireless barcode readers.
From: Italy Datalogic bar code reader Datalogic Dragon M101/D industrial Wireless hand-held Manual
What is the maximum wireless range of the Dragon M101?
The device can operate up to 50 meters from the base station.
From: Datalogic Dragon M101 Industrial Wireless Handheld Barcode Reader User Manual
How many readers can a single base station support?
One base can simultaneously support 32 wireless barcode readers.
From: Datalogic Dragon M101 Industrial Wireless Handheld Barcode Reader User Manual
