The CENTRAL SEMICONDUCTOR 1.0 Amp Surface Mount Silicon Rectifier is a high quality, well constructed, highly reliable component designed for use in all types of commercial, industrial, entertainment, computer, and automotive applications.

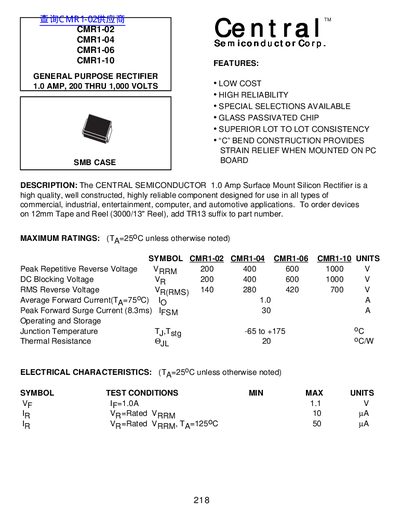

This document is a technical datasheet for the Central Semiconductor CMR1 series of general purpose silicon rectifiers. The components are available in four specific models: CMR1-02, CMR1-04, CMR1-06, and CMR1-10.
| Average Forward Current (TA=75°C) | 1.0 A |
|---|---|
| Peak Repetitive Reverse Voltage | 200 to 1000 V |
| Junction Temperature Range | -65 to +175 °C |
| Thermal Resistance @jL | 20 °C/W |
The devices are designed as Surface Mount Silicon Rectifiers.
Add the TR13 suffix to the part number for 12mm Tape and Reel.
