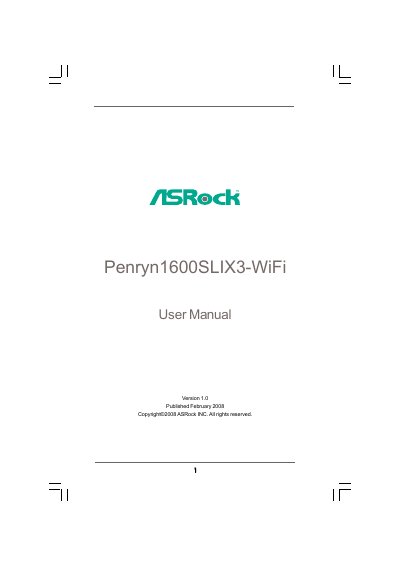

ASRock Penryn 1600SLIX3-WiFi Motherboard User Manual
This manual covers the hardware installation steps for the ASRock Penryn 1600SLIX3‑WiFi ATX motherboard, including CPU, memory, expansion cards, and the integrated Wi‑Fi module. It also details BIOS configuration, over‑clocking options, and supported operating systems.
Additional sections describe the Wi‑Fi‑802.11g module specifications, SATA/RAID capabilities, and the contents of the support CD with drivers and utilities. Safety notices, FCC compliance, and California battery disposal guidelines are also included. This manual is written in Chinese.
ASRock PENRYN1600SLIX3-WIFI specifications
| Form Factor | ATX (12.0" x 9.6") |
|---|---|
| Supported CPUs | Penryn Quad Core Yorkfield, Dual Core Wolfdale |
| Chipset | NVIDIA nForce 680i SLI |
| Memory Slots | 4 DDR2 DIMM slots |
| Maximum Memory | 8 GB |
| Supported Memory Types | DDR2 800/667/533 non‑ECC, un‑buffered |
| PCI Express Slots | 3 × PCIe x16, 2 × PCIe x1, 2 × PCI |
| Audio Codec | ALC890, 110 dB dynamic range |
| LAN | Gigabit Ethernet (10/100/1000 Mb/s) |
| Wireless LAN | ASRock WiFi‑802.11g module, up to 54 Mbps |
| SATA Connectors | 6 × SATAII 3.0 Gb/s (RAID supported) |
| BIOS | 8 Mb AMI BIOS |
Source: ASRock Penryn1600SLIX3-WiFi Motherboard Installation Guide
All ASRock PENRYN1600SLIX3-WIFI documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
How many DDR2 memory slots are available and what is the maximum memory capacity?
The board provides four DDR2 DIMM slots with a maximum supported system memory of 8 GB.
From: ASRock Penryn1600SLIX3-WiFi Motherboard Installation Guide
What wireless capability is built into the motherboard?
It includes an ASRock WiFi‑802.11g module that supports 802.11g/b with up to 54 Mbps data rate and AP mode.
From: ASRock Penryn1600SLIX3-WiFi Motherboard Installation Guide
What is the operating range of the integrated Wi‑Fi module?
Indoor range is up to 80 ft (30 m) and outdoor range up to 200 ft (60 m), depending on the environment.
How can I enable the full‑screen logo during boot?
In the BIOS Setup Utility, set the "Full Screen Logo" option to Enabled.
