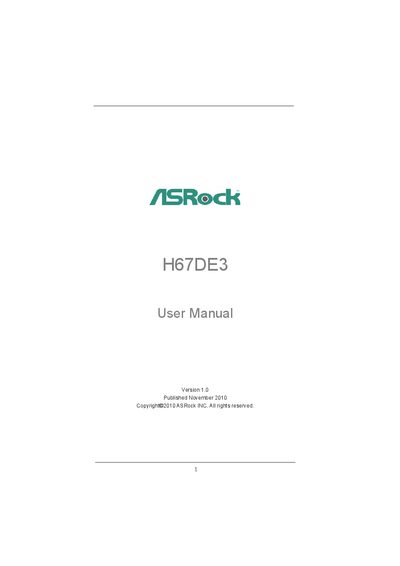

ASRock H67DE3 Motherboard User Manual
This manual covers everything needed to set up the ASRock H67DE3 motherboard, including package contents, hardware installation, CPU and memory installation, and detailed guidance for SATA, USB, and expansion slot connections. It also explains the UEFI BIOS setup, driver installation, and operating system installation procedures.
Additional sections describe the motherboard’s unique features such as the ASRock Extreme Tuning Utility, RAID support, and software support on the included Support CD, along with safety warnings and regulatory compliance information.
ASRock H67DE3 specifications
| Form Factor | ATX (12.0‑in x 8.3‑in) |
|---|---|
| CPU Socket | LGA1155 (1155‑Pin CPU Socket) |
| Chipset | Intel H67 |
| SATA Ports | 2 × SATA3 6 Gb/s, 4 × SATA2 3 Gb/s |
| USB Ports | 4 × USB 2.0, 2 × USB 3.0 |
| LAN Controller | Realtek RTL8111E Gigabit Ethernet |
| Audio Codec | Realtek ALC892 7.1‑channel HD Audio |
All ASRock H67DE3 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What operating systems are supported by the ASRock H67DE3 motherboard?
It supports Microsoft Windows 7/7 64‑bit, Vista/Vista 64‑bit, XP and XP 64‑bit.
How do I enable AHCI mode for installing Windows on a large hard drive?
Press F2 or Delete at POST, go to Advanced → Storage Configuration → SATA Mode and set it to AHCI.
How many USB 3.0 ports are provided on the board?
The motherboard includes two rear USB 3.0 ports.
Does the H67DE3 support RAID configurations?
Yes, the SATA ports support RAID 0, RAID 1, RAID 5, and RAID 10.
