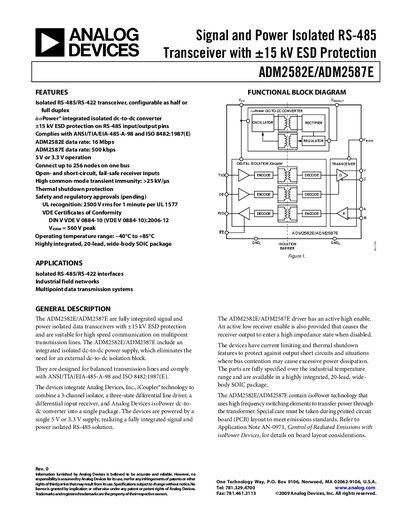

ANALOG DEVICES ADM2582E/ADM2587E handbook

The ADM2582E/ADM2587E is an isolated RS-485/RS-422 transceiver from Analog Devices, supporting half-duplex and full-duplex communication. It integrates isoPower® isolated DC/DC converter and provides ±15 kV ESD protection. The device complies with ANSI/TIA/EIA-485-A-98 and ISO 8482:1987(E) standards. The maximum data rate of ADM2582E is 16 Mbps and that of ADM2587E is 500 kbps.

Brand
Analog Devices
File format
PDF
Published
26 March, 2012
Updated
30 September, 2023
Model
ADM2582E
MD5 checksum
3477EC4A550D379DA2512EE38FC3C536
PDF
ANALOG DEVICES ADM2582E/ADM2587E handbook PDF
Download PDF
