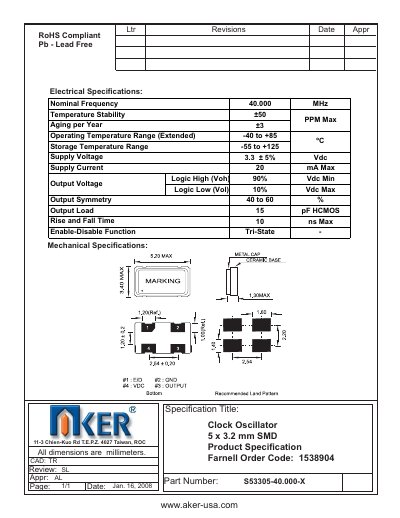

AKER - Clock Oscillator 5 x 3.2 mm SMD Product Speci cation TR Farnell Order Code: 1538904
The Aker 40.000 MHz clock oscillator is a 5 × 3.2 mm SMD device designed for precise timing applications. It complies with RoHS standards and is lead‑free.
The document lists detailed electrical specifications such as supply voltage, output levels, and timing performance, as well as mechanical dimensions and temperature operating ranges. This manual is written in Chinese.
AKER 5 x 3.2 mm SMD specifications
| Nominal Frequency | 40.000 MHz |
|---|---|
| Temperature Stability | ±50 PPM |
| Max Aging per Year | ±3 % (approx.) |
| Operating Temperature Range (Extended) | -40 °C to +85 °C |
| Supply Voltage | 3.3 V ± 5 % DC |
| Supply Current | 20 mA max |
| Logic High (Voh) | ≥ 90 % Vdc |
| Logic Low (Vol) | ≤ 10 % Vdc |
| Output Symmetry | 40 %–60 % |
| Output Load | 15 pF HCMOS |
| Rise and Fall Time | 10 ns max |
| Enable‑Disable Function | Tri‑State |
Source: AKER - Clock Oscillator 5 x 3.2 mm SMD Product Speci cation TR Farnell Order Code: 1538904
