Aker C5S-10.000-12-3030-X Quartz Crystal Unit is a SMD crystal unit with a nominal frequency of 10.000 MHz. It is RoHS compliant and lead free.

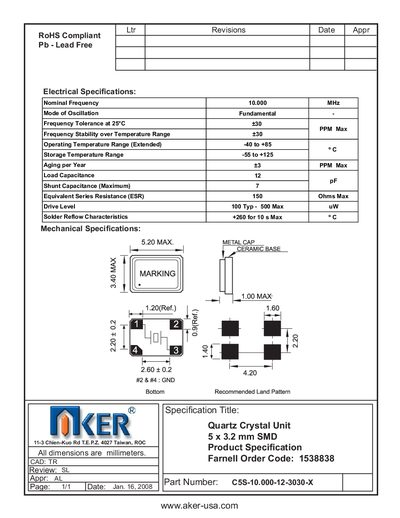

This datasheet describes the AKER quartz crystal unit (5 × 3.2 mm SMD) identified by part number C5S-10.000-12-3030-X. It is RoHS‑compliant and intended for use in frequency‑critical applications.
Key electrical specifications include a nominal frequency of 10.000 MHz, fundamental mode of oscillation, ±30 ppm frequency tolerance at 25 °C, and a drive level of 100 µW typical to 500 µW maximum. Mechanical data provide the package dimensions (5.20 mm max length) and recommended land pattern for PCB layout.
| Nominal Frequency | 10.000 MHz |
|---|---|
| Mode of Oscillation | Fundamental |
| Frequency Tolerance (25 °C) | +30 ppm |
| Frequency Stability over Temperature | +30 ppm Max |
| Operating Temperature Range (Extended) | -40 to +85 °C |
| Storage Temperature Range | -55 to +125 °C |
| Aging per Year | +3 ppm Max |
| Load Capacitance | 12 pF |
| Shunt Capacitance (Maximum) | 7 pF |
| Equivalent Series Resistance (ESR) | 150 Ω Max |
| Drive Level | 100 µW Typ – 500 µW Max |
| Solder Reflow Characteristics | +260 °C for 10 s Max |
| Package Length (Maximum) | 5.20 mm |
The nominal frequency is 10.000 MHz.
The crystal can withstand a reflow temperature up to +260 °C for a maximum of 10 seconds.
The load capacitance is 12 pF.
The ESR must not exceed 150 Ω.
