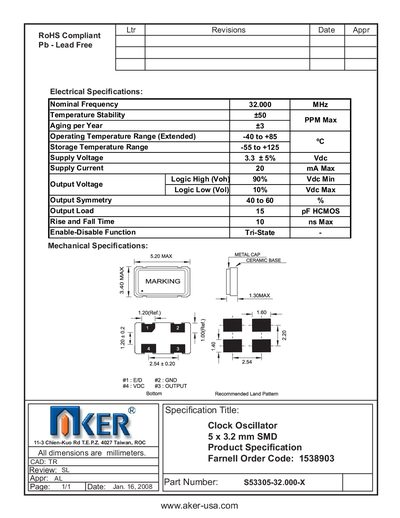

The S53305-32.000-X clock oscillator is a 32.000 MHz device with RoHS compliance and lead-free properties.
The AKER $53305-32.000-X is a 5 × 3.2 mm SMD clock oscillator designed for a nominal frequency of 32 MHz. It offers a temperature stability of 50 ppm (max) and an aging rate of +3 ppm per year, with an extended operating temperature range of –40 °C to +85 °C.
The device runs from a 3.3 V supply, drawing up to 20 mA, and provides HCMOS output levels (Voh ≥ 90 % Vdd, Vol ≤ 10 % Vdd) with a 15 pF load. It features a tri‑state enable/disable function, 10 ns maximum rise/fall time, and output symmetry of 40‑60 %. The package complies with RoHS, is lead‑free, and its mechanical dimensions are 5.20 mm max metal cap height and 4.30 mm max length.
| Nominal Frequency | 32.000 MHz |
|---|---|
| Aging per Year | +3 |
| Operating Temperature Range (Extended) | -40 to +85 °C |
| Storage Temperature Range | -55 to +125 °C |
| Supply Voltage | 3.3 V |
| Supply Current | 20 mA Max |
| Logic High Output Voltage (Voh) | ≥ 90 % Vdd |
| Logic Low Output Voltage (Vol) | ≤ 10 % Vdd |
| Output Symmetry | 40 to 60 % |
| Output Load | 15 pF HCMOS |
| Rise and Fall Time | 10 ns Max |
| Enable‑Disable Function | Tri‑State |
| Package Height (Metal Cap) | 5.20 mm Max |
| Package Length | 4.30 mm Max |
The oscillator’s nominal frequency is 32.000 MHz.
It operates from a 3.3 V supply.
