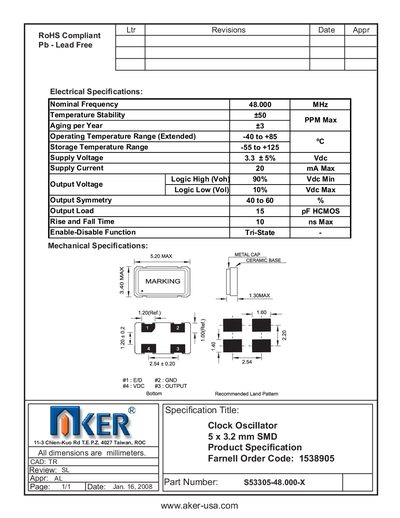

This document describes the specifications and characteristics of the S53305-48.000-X clock oscillator produced by Aker, including frequency, temperature stability, operating temperature range, supply voltage, etc.
The AKER $53305-48.000-X clock oscillator is a surface‑mount device measuring 5 × 3.2 mm. It provides a nominal frequency of 48.000 MHz and includes an enable‑disable tri‑state function. Electrical characteristics such as supply voltage, current consumption, output logic levels, and rise/fall times are specified for reliable integration.
The component complies with RoHS and is lead‑free. It operates over an extended temperature range of –40 °C to +85 °C and can be stored from –55 °C to +125 °C. Mechanical details, including recommended land pattern dimensions, are provided for PCB layout.
| Nominal Frequency | 48.000 MHz |
|---|---|
| Aging per Year | +3 |
| Operating Temperature Range (Extended) | -40 °C to +85 °C |
| Storage Temperature Range | -55 °C to +125 °C |
| Supply Voltage | 3.3 V (45 % Vde) |
| Supply Current | 20 mA Max |
| Logic High Output Voltage (Voh) | 90 % Vde Min |
| Logic Low Output Voltage (Vol) | 10 % Vde Max |
| Output Symmetry | 40 % to 60 % |
| Output Load | 15 pF HCMOS |
| Rise and Fall Time | 10 ns Max |
| Enable‑Disable Function | Tri‑State |
It is 48.000 MHz.
The extended operating temperature range is –40 °C to +85 °C.
The device requires a 3.3 V supply (45 % Vde).
The part number is $53305-48.000-X.
