Start here

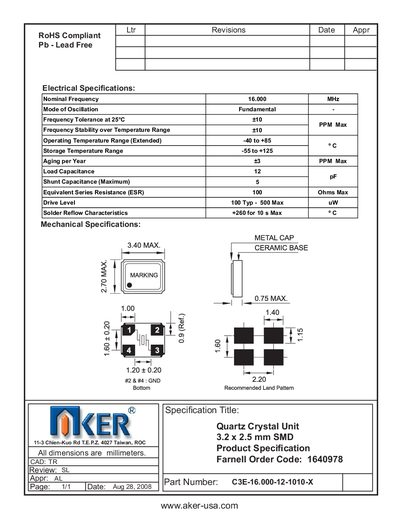

AKER C3E-16.000-12-1010-X Quartz Crystal Unit Datasheet

Datasheet 1 pages · 66 KB · EN

The AKER C3E-16.000-12-1010-X quartz crystal unit is a surface‑mount component designed for precise frequency reference applications. It measures 3.2 mm × 2.5 mm and complies with RoHS lead‑free requirements.

Key specifications include a nominal frequency of 16 MHz, a load capacitance of 12 pF, ESR up to 100 Ω, and an operating temperature range of –40 °C to +85 °C. Mechanical details such as a metal cap height of up to 3.40 mm and recommended land pattern dimensions are also provided.

Read online

AKER C3E-16.000-12-1010-X specifications

Nominal Frequency	16.000 MHz
Mode of Oscillation	Fundamental
Frequency Tolerance at 25°C	+10 ppm
Frequency Stability over Temperature	+10 ppm Max
Operating Temperature Range	-40 to +85 °C
Storage Temperature Range	-55 to +125 °C
Aging per Year	+3 ppm Max
Load Capacitance	12 pF
Shunt Capacitance (Maximum)	5 pF
Equivalent Series Resistance (ESR)	100 Ω Max
Drive Level	100 µW Typ – 500 µW Max
Solder Reflow Characteristics	+260 °C for 10 s Max
Metal Cap Height	3.40 mm Max
Ceramic Base Height	0.75 mm Max

Source: AKER C3E-16.000-12-1010-X Quartz Crystal Unit Datasheet

All AKER C3E-16.000-12-1010-X documents by type

Datasheet 2

Ratings, dimensions and ordering codes, for selection and design work.

Questions answered in these manuals

What is the nominal frequency of the AKER C3E-16.000-12-1010-X crystal?

The nominal frequency is 16.000 MHz.

From: AKER C3E-16.000-12-1010-X Quartz Crystal Unit Datasheet

What load capacitance does this crystal require?

It requires a load capacitance of 12 pF.
