This is a clock oscillator with a frequency of 14.31818MHz.

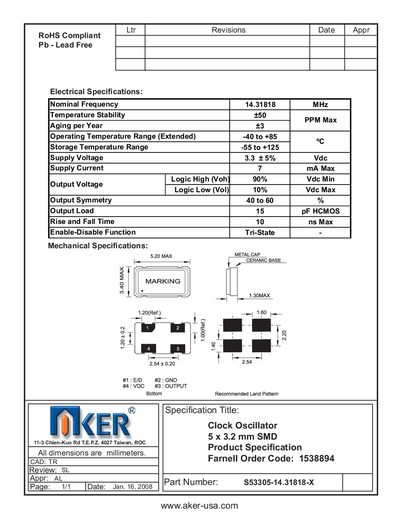

The AKER 5 × 3.2 mm SMD clock oscillator is a surface‑mount timing device designed for precise frequency generation. It is supplied in a compact ceramic package with a metal cap and is RoHS compliant.
Key specifications include a nominal frequency of 14.31818 MHz, a supply voltage of 3.3 V, and operation over an extended temperature range of –40 °C to +85 °C. Electrical parameters such as output load, rise/fall time, and logic levels are also detailed for design integration.
| Nominal Frequency | 14.31818 MHz |
|---|---|
| Aging per Year | +3 |
| Operating Temperature Range (Extended) | -40 to +85 °C |
| Storage Temperature Range | -55 to +125 °C |
| Supply Voltage | 3.3 V |
| Supply Current | 7 mA Max |
| Logic High Output Voltage | 90% Vde Min |
| Logic Low Output Voltage | 10% Vde Max |
| Output Load | 15 pF HCMOS |
| Rise and Fall Time | 10 ns Max |
| Enable‑Disable Function | Tri‑State |
| Package Size | 5.20 mm x 3.2 mm |
The nominal frequency is 14.31818 MHz.
It operates from –40 °C to +85 °C (extended range).
The device requires a 3.3 V supply.
The maximum supply current is 7 mA.
