AKER - aker-usa.com 11-3 Chien-Kuo Rd T.E.P.Z. 4027 Taiwan ROC S23305-12.000-X Manual
User Manual
This document is a product specification for a clock oscillator, which includes detailed information on electrical and mechanical specifications.
AKER 000-X manuals
AKER - aker-usa.com 11-3 Chien-Kuo Rd T.E.P.Z. 4027 Taiwan ROC S23305-16.000-X Manual
User Manual
This document describes a clock oscillator named S23305-16.000-X with a size of 2.5 x 2 mm and a frequency of 16.000 MHz. The product is RoHS compliant and lead-free. It has a temperature stability of ±50 PPM and a maximum aging rate of ±3 PPM per year. The operating temperature range is -40 to +85 degrees Celsius, and the storage temperature range is -55 to +125 degrees Celsius. The supply voltage is 3.3V with a supply current of 7 mA. The logic high output voltage (Voh) is minimum 90% Vdc, and the logic low output voltage (Vol) is maximum 10% Vdc. The output symmetry is 40 to 60%. The output load is 15 pF. The HCMOS rise and fall time is maximum 5 ns. It has an enable-disable function and tri-state output.
AKER - aker-usa.com 11-3 Chien-Kuo Rd T.E.P.Z. 4027 Taiwan ROC S23305-20.000-X Clock Oscillator 2.5 x Manual
User Manual
This document describes the electrical and mechanical specifications of Aker's S23305-20.000-X clock oscillator, including frequency, temperature stability, aging, operating temperature range, storage temperature range, supply voltage, output voltage, output symmetry, etc.
AKER - aker-usa.com 11-3 Chien-Kuo Rd T.E.P.Z. 4027 Taiwan ROC S23305-40.000-X Manual
User Manual
S23305-40.000-X is a clock oscillator from Aker. The frequency is 40.000MHz, the operating voltage is 3.3V, and the current is 20mA.
AKER - aker-usa.com 11-3 Chien-Kuo Rd T.E.P.Z. 4027 Taiwan ROC S23305-25.000-X Manual
User Manual
This document is the specification of Aker's S23305-25.000-X clock oscillator product
AKER - aker-usa.com 11-3 Chien-Kuo Rd T.E.P.Z. 4027 Taiwan ROC S23305-24.000-X Manual
User Manual
This document describes the specifications and characteristics of a clock oscillator named S23305-24.000-X. It has a nominal frequency of 24.000 MHz and operates in a temperature range of -40 to +85 ºC. It is a 2.5 x 2 mm surface mount device that is compliant with RoHS and lead-free. The supply voltage range is 3.3 ± 5% Vdc and the maximum current is 12 mA. It features a Tri-State enable-disable function and HCMOS rise and fall time.
AKER - aker-usa.com 11-3 Chien-Kuo Rd T.E.P.Z. 4027 Taiwan ROC S53305-50.000-X Manual
User Manual
S53305-50.000-X is a 50.000MHz clock oscillator produced by Aker, working voltage is 3.3V, working temperature range is -40℃ to +85℃.
AKER - aker-usa.com 11-3 Chien-Kuo Rd T.E.P.Z. 4027 Taiwan ROC S33305-10.000-X Clock Oscillator 3.2 x Manual
User Manual
S33305-10.000-X Clock Oscillator is a 3.2 x 2.5 mm SMD product with RoHS compliance, Pb - lead free.
AKER - aker-usa.com 11-3 Chien-Kuo Rd T.E.P.Z. 4027 Taiwan ROC S53305-8.000-X Clock Oscillator 5 x 3.2 Manual
User Manual
S53305-8.000-X is a clock oscillator from Aker, with a frequency of 8.000 MHz, working voltage of 3.3 ± 5% Vdc, supply current of 7 mA, output voltage of logic high (Voh) 90% Vdc Min Logic Low (Vol) 10% Vdc Max Output Symmetry 40 to 60 % Output Load 15 pF HCMOS Rise and Fall Time 10 ns Max Enable-Disable Function Tri-State.

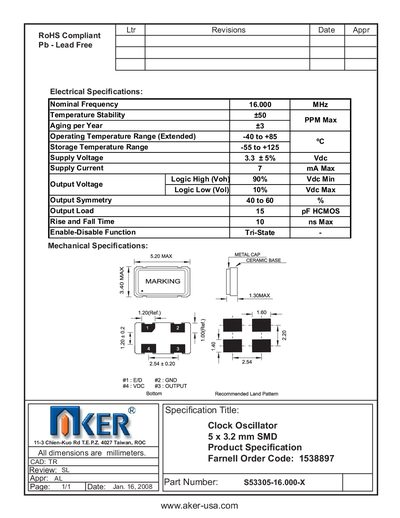

AKER - aker-usa.com 11-3 Chien-Kuo Rd T.E.P.Z. 4027 Taiwan ROC S53305-16.000-X Clock Oscillator Manual
User Manual
The S53305-16.000-X is a 16.000 MHz SMD clock oscillator produced by Aker.
AKER - aker-usa.com 11-3 Chien-Kuo Rd T.E.P.Z. 4027 Taiwan ROC S33305-12.000-X Clock Oscillator 3.2 x Manual
User Manual
The document introduces a SMD product with a size of 3.2 x 2.5 mm, model S33305-12.000-X, which is a clock oscillator. It has a nominal frequency of 12.000 MHz, temperature stability of ±50 PPM, annual aging rate of ±3 PPM, and operating temperature range of -40 to +85 ºC. The product is RoHS compliant and lead-free. The document also provides information on its mechanical specifications, electrical specifications, supply voltage and current, output voltage, and output symmetry.
AKER - aker-usa.com 11-3 Chien-Kuo Rd T.E.P.Z. 4027 Taiwan ROC S33305-25.000-X Clock Oscillator 3.2 x Manual
User Manual
This document describes the specifications and characteristics of a clock oscillator product. The product is manufactured by Aker with the model number S33305-25.000-X. It has a frequency stability of ±50 PPM and a maximum aging rate of ±3 PPM per year. The operating temperature range is -40 to +85 ºC, and the storage temperature range is -55 to +125 ºC. The supply voltage is 3.3 Vdc with a maximum supply current of 12 mA. The product is RoHS compliant and lead-free. The logic high output voltage is a minimum of 90% Vdc, and the logic low output voltage is a maximum of 10% Vdc. The output symmetry is 40 to 60%, and the output load is 15 pF. The rise and fall time is a maximum of 5 ns. The product also features a tri-state enable-disable function.
AKER - aker-usa.com 11-3 Chien-Kuo Rd T.E.P.Z. 4027 Taiwan ROC S23305-8.000-X Clock Oscillator 2.5 x Manual
User Manual
This document describes a clock oscillator called S23305-8.000-X with dimensions of 2.5 x 2 mm. The product is RoHS compliant and lead-free. Its features include a nominal frequency of 8.000 MHz, temperature stability of ±50 PPM, maximum aging rate of ±3 per year, operating temperature range of -40 to +85ºC, storage temperature range of -55 to +125ºC, supply voltage of 3.3 ± 5% Vdc, supply current of 7 mA max, logic high output voltage (Voh) of 90% Vdc min, logic low output voltage (Vol) of 10% Vdc max, output symmetry of 40 to 60%, output load of 15 pF, HCMOS rise and fall time of 5 ns max, and a tri-state enable-disable function.
AKER - aker-usa.com 11-3 Chien-Kuo Rd T.E.P.Z. 4027 Taiwan ROC S53305-10.000-X Clock Oscillator 5 x Manual
User Manual
S53305-10.000-X Clock Oscillator 5 x 3.2 mm SMD Product Specifi cation is a 10.000 MHz frequency clock oscillator manufactured by AKER.
AKER - aker-usa.com 11-3 Chien-Kuo Rd T.E.P.Z. 4027 Taiwan ROC S53305-25.000-X Clock Oscillator 5 x Manual
User Manual
This document is about S53305-25.000-X clock oscillator product specification
