This document describes the electrical and mechanical specifications of the Aker C5S-24.000-12-3030-X Quartz Crystal Unit, including frequency range, temperature range, load capacitance, and equivalent series resistance.
The AKER quartz crystal unit is a 5 × 3.2 mm surface‑mount device with a nominal frequency of 24 MHz. It complies with RoHS and is lead‑free, offering stable performance across a wide temperature range.

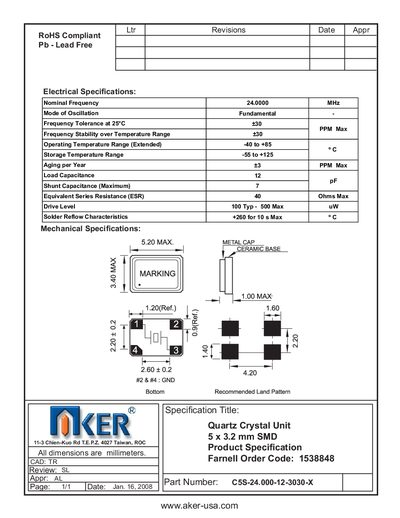

The document lists the crystal's electrical characteristics, mechanical dimensions, marking details, and recommended land pattern, and provides the part number for ordering (C5S-24.000-12-3030-X) and the Farnell order code 1538848.
| Nominal Frequency | 24.0000 MHz |
|---|---|
| Frequency Tolerance at 25°C | +30 ppm |
| Frequency Stability over Temperature | +30 ppm Max |
| Operating Temperature Range | -40 to +85 °C |
| Storage Temperature Range | -55 to +125 °C |
| Aging per Year | +3 ppm Max |
| Load Capacitance | 12 pF |
| Shunt Capacitance (Maximum) | 7 pF |
| Equivalent Series Resistance (ESR) | 40 Ω Max |
| Drive Level | 100 µW Typ – 500 µW Max |
| Solder Reflow Characteristics | +260 °C for 10 s Max |
| Maximum Length (Mechanical) | 5.20 mm |
The nominal frequency is 24.0000 MHz.
It operates from –40 °C to +85 °C.
The part number is C5S-24.000-12-3030-X.
