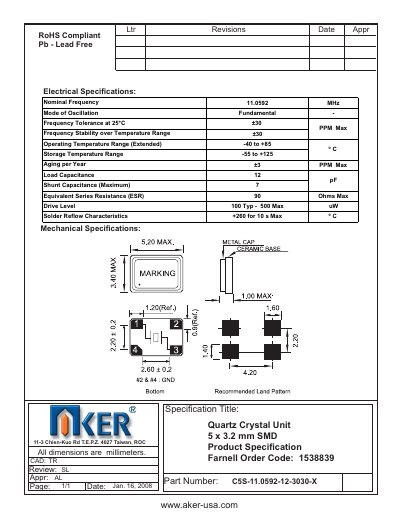

This document is the product specification for C5S-11.0592-12-3030-X quartz crystal unit. The product has a frequency range of 11.0592 MHz and a frequency stability of ±30 PPM. The load capacitance is 12 pF, the resistance is 90 ohms, the operating temperature range is -40 to +85 º C, and the storage temperature range is -55 to +125 º C.
This document provides the electrical and mechanical specifications for the Aker USA quartz crystal unit in a 5 × 3.2 mm SMD package. It includes frequency, tolerance, temperature ranges, aging, load capacitance, ESR, drive level and solder reflow limits.
The data is intended for designers and manufacturers who need to select the appropriate crystal for their circuits, ensuring compliance with RoHS and lead‑free requirements. This manual is written in Chinese.
| Nominal Frequency | 11.0592 MHz |
|---|---|
| Frequency Tolerance at 25 °C | ±30 PPM |
| Maximum Frequency Stability over Temperature | ±30 PPM |
| Operating Temperature Range (Extended) | -40 °C to +85 °C |
| Storage Temperature Range | -55 °C to +125 °C |
| Aging per Year | ±3 PPM |
| Maximum Load Capacitance | 12 pF |
| Shunt Capacitance (Maximum) | 7 pF |
| Equivalent Series Resistance (ESR) | 90 Ω |
| Maximum Drive Level | 100‑500 µW |
| Solder Reflow Characteristics | +260 °C for 10 s max |
The crystal has a nominal frequency of 11.0592 MHz.
It operates from –40 °C to +85 °C (extended range).
The maximum load capacitance is 12 pF.
Yes, the document states it is RoHS compliant and lead‑free.
