S53305-12.000-X is a 12.000 MHz clock oscillator from Aker with a 5 x 3.2 mm SMD package. The product is RoHS compliant and lead free.
The AKER $53305-12.000-X is a surface‑mount clock oscillator designed for 12 MHz operation in a compact 5 × 3.2 mm package. It offers low power consumption, tri‑state enable/disable, and a 15 pF HCMOS load capability.

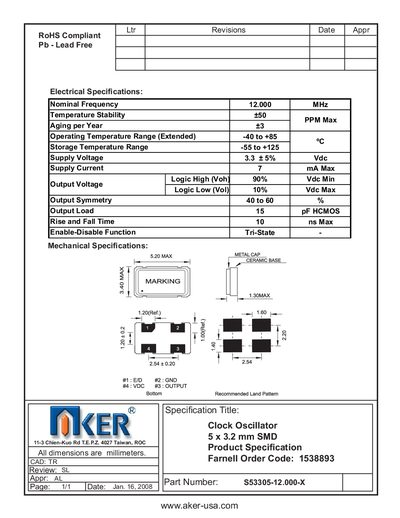

This datasheet provides the full set of electrical specifications, mechanical dimensions, and the recommended land‑pattern for PCB layout, along with compliance information such as RoHS and lead‑free status.
| Nominal Frequency | 12.000 MHz |
|---|---|
| Aging per Year | +3 |
| Operating Temperature Range (Extended) | -40 to +85 °C |
| Storage Temperature Range | -55 to +125 °C |
| Supply Voltage | 3.3 V (45% Vde) |
| Supply Current | 7 mA Max |
| Logic High Output Voltage | 90% Vde Min |
| Logic Low Output Voltage | 10% Vde Max |
| Output Symmetry | 40 to 60 % |
| Output Load | 15 pF HCMOS |
| Rise and Fall Time | 10 ns Max |
| Enable‑Disable Function | Tri‑State |
| Package Size | 5 × 3.2 mm SMD |
| Recommended Land Pitch | 2.54 mm |
It operates at a nominal frequency of 12.000 MHz.
The device requires a 3.3 V supply (45% Vde).
The extended operating temperature range is –40 °C to +85 °C.
The recommended land‑pattern pitch is 2.54 mm.
