This is a 32.0000MHz quartz crystal unit, size is 5 x 3.2mm, belongs to SMD type, supports RoHS directive and lead-free standard.

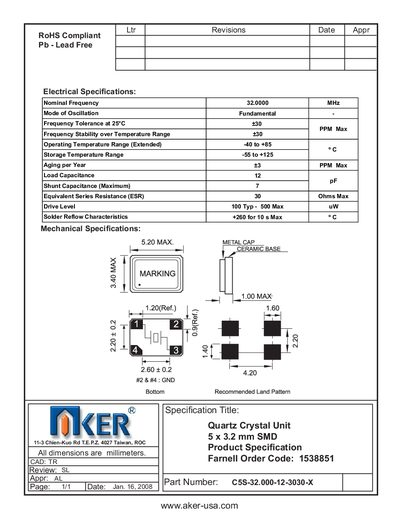

The AKER C5S-32.000-12-3030-X is a surface‑mount quartz crystal unit measuring 5 × 3.2 mm. It operates at a nominal frequency of 32 MHz with a load capacitance of 12 pF and complies with RoHS requirements. The crystal offers a frequency tolerance of +30 ppm at 25 °C and a stability of +30 ppm over the extended temperature range.
Mechanical dimensions are given in millimeters, and the part includes recommended land pattern information for PCB design. The part number for ordering is C5S-32.000-12-3030-X, and it is listed under Farnell order code 1538851. Additional details such as ESR, drive level, and solder reflow characteristics are provided for designers.
| Nominal Frequency | 32.0000 MHz |
|---|---|
| Mode of Oscillation | Fundamental |
| Frequency Tolerance at 25°C | +30 ppm |
| Frequency Stability over Temperature Range | +30 ppm Max |
| Operating Temperature Range (Extended) | -40 to +85 °C |
| Storage Temperature Range | -55 to +125 °C |
| Aging per Year | +3 ppm Max |
| Load Capacitance | 12 pF |
| Shunt Capacitance (Maximum) | 7 pF |
| Equivalent Series Resistance (ESR) | 30 Ω Max |
| Drive Level | 100 Typ - 500 Max µW |
| Solder Reflow Characteristics | +260 °C for 10 s Max |
The nominal frequency is 32.0000 MHz.
It requires a load capacitance of 12 pF.
The crystal operates from –40 °C to +85 °C.
The part number is C5S-32.000-12-3030‑X.
