Key facts
- Brand
- AJA
- Model
- RD10MD
- Category
- Other Electronics
- Documents
- 2
- Languages
- EN
- Last added
- 2012-07-09
Start here

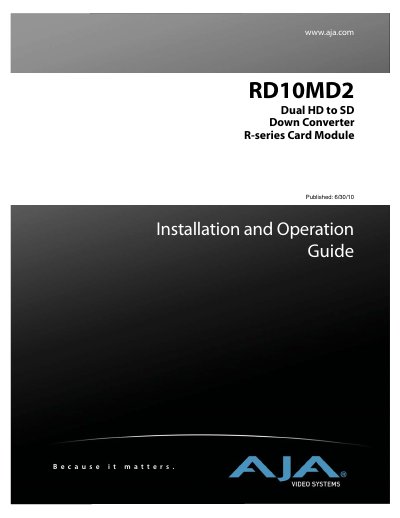

AJA RD10MD2 Dual HD to SD Down Converter Installation and Operation Guide
The AJA RD10MD2 is a 10-bit broadcast-quality Dual channel HD down converter designed as an R-series Card Module. It features two fully independent channels that support multi-standard HD-SDI or SDI inputs and provide outputs in either SDI or composite analog formats. The device supports full 10-bit data path processing, including 3:2 pulldown for 23.98/24 Hz P/PSF inputs.
Read onlineAJA RD10MD specifications
| Formats | 1080i 50/59.94/60 Hz, 1080p/psf 23.98/24/25/29.97/30 Hz, 720p 23.98/24/25/29.97/30/50/60 Hz |
|---|---|
| Inputs | 2 Channels, HD-SDI or SDI SMPTE 259/292/296, 10-bit, 2x BNC |
| Downconversion | Multi-point interpolation, 10-bit processing 3:2 conversion for 23.98/24p/psf inputs |
| Power Consumption | 7 watts |
Source: AJA RD10MD Dual HD to SD Down Converter R-Series Card Module User Manual
All AJA RD10MD documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What are the supported HD formats for the RD10MD?
The RD10MD supports 1080i at 50/59.94/60 Hz, 1080p/psf at 23.98/24/25/29.97/30 Hz, and 720p at 23.98/24/25/29.97/30/50/60 Hz.
From: AJA RD10MD Dual HD to SD Down Converter R-Series Card Module User Manual
How many channels does the RD10MD have?
The RD10MD has two fully independent channels for HD to SD down conversion.
From: AJA RD10MD Dual HD to SD Down Converter R-Series Card Module User Manual
What monitor formats does the RD10MD2 support?
The SD output can be formatted for either 4:3 or 16:9 monitors.
From: AJA RD10MD2 Dual HD to SD Down Converter Installation and Operation Guide
Does the RD10MD2 support 3:2 pulldown?
Yes, it supports 3/2 Pulldown for 23.98/24 Hz P/PSF inputs.
From: AJA RD10MD2 Dual HD to SD Down Converter Installation and Operation Guide
