Key facts
- Brand
- AJA
- Model
- FS1
- Documents
- 2
- Languages
- EN
- Last added
- 2012-07-09
Start here

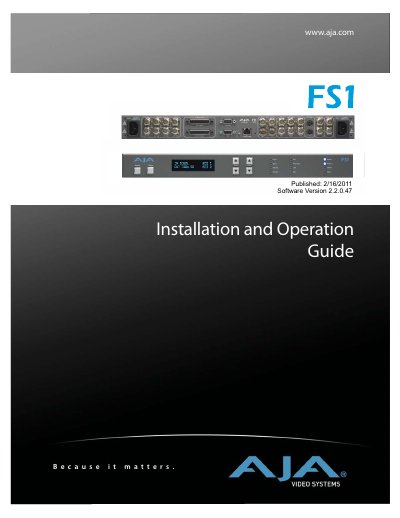

AJA FS1 Installation and Operation Guide
The AJA FS1 is a professional video converter designed to convert between SDI/HD-SDI signals and analog component or composite formats. This manual provides instructions on unpacking, mounting, and connecting the device to a network via DHCP or static IP addresses. It details how to control the unit using front panel menus or a remote web browser.
Read onlineAJA FS1 specifications
| Video Inputs and Outputs | Dual SDI/HD-SDI, SMPTE 259/274/292/296 HD component YPbPr/RGB (RGB is output only), SMPTE-274 SD component/composite/YC (S-Video) |
|---|---|
| Video A/D, D/A | 12 bits 2x oversampled (HD) 4x oversampled (SD) |
| Audio Inputs and Outputs | 8 Channel Balanced, 25 pin D (Tascam pinout) |
| LAN | 10/100 automatic configuration Automatic cable crossover (auto MDI-X) |
All AJA FS1 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the warranty period for the FS1?
AJA Video warrants that this product will be free from defects in materials and workmanship for a period of five years from the date of purchase.
How can I control the FS1 remotely?
You can control the FS1 via its Ethernet connection using a Remote Web Browser.
What is the warranty period for the AJA FS1?
AJA Video warrants that this product will be free from defects in materials and workmanship for a period of five years from the date of purchase.
How can I control the FS1 remotely?
You can control the FS1 via a web browser or using SNMP.
