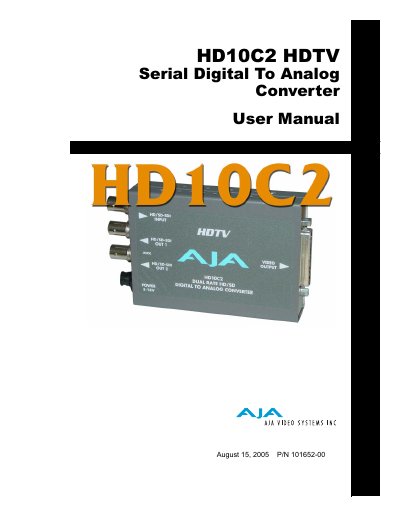

AJA HD10C2 HDTV Serial Digital to Analog Converter User Manual
The AJA HD10C2 is a high-quality 10-bit dual-rate converter designed for both HD-SDI and SDI inputs. It converts digital video signals into full bandwidth HD component (RGB or YPbPr) or VGA style RGBHV video, as well as supporting component or composite SD outputs.
Read onlineAJA D10C2 specifications
| Serial Input | SMPTE 259M 270MB, (SDI) |
|---|---|
| Frequency Response (Y) | +/- .15dB to 5.5MHz |
| Frequency Response (Chroma - Component) | +/- .15dB to 2.5MHz |
| D/A Converters | 10 bits, 4X oversampling |
| Delay (input to output) | 1.5us |
| Power | 5v DC regulated, 4 watt |
| Size | 147 x 79 x 25 mm |
Source: AJA D10C2 10-bit SDI to Analog Converter User Manual
All AJA D10C2 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What video formats does the D10C2 support?
The D10C2 supports RGB, YPbPr, or Betacam Component formats, as well as Composite NTSC or PAL.
How is the D10C2 configured?
Configuration is done using an external 4-switch DIP switch accessible through a cut-out in the bottom of the unit.
Can the device be configured for both bi-level and tri-level sync?
Yes, an internal jumper allows selection between bi and tri level sync on the HD output.
From: AJA HD10C2 HDTV Serial Digital to Analog Converter User Manual
What power voltage range is required to operate the HD10C2 converter?
The device requires a regulated power supply providing between +5 and +18 volts DC.
From: AJA HD10C2 HDTV Serial Digital to Analog Converter User Manual
