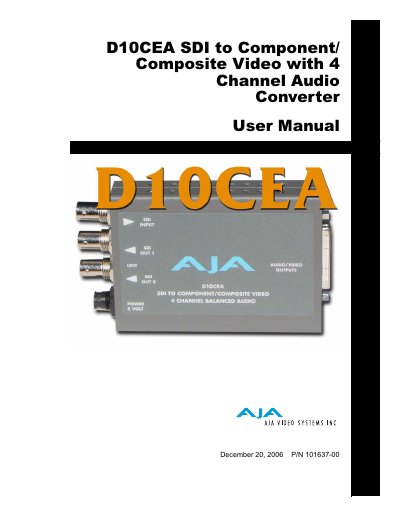

AJA D10CEA SDI to Component/Composite Video Converter User Manual
The D10CEA is a versatile low-cost converter designed for video and audio monitoring. It accepts SDI input with embedded audio and converts it to 10-bit component (YPbPr, RGB) or composite analog video outputs, along with four channels of balanced analog audio. The device also provides two re-clocked loop-thru SDI outputs.
Read onlineAJA D10CEA specifications
| Input Format | SMPTE 259M with embedded audio |
|---|---|
| Video Outputs | YPbPr - SMPTE, EBU-N10, Betacam, RGB, NTSC, PAL, YC (S-Video), 10-bits |
| Audio Outputs | 4 Channel Balanced/Unbalanced |
| Frequency Response (Y Video) | +/- .25dB to 5.5MHz |
| Frequency Response (Audio) | +/- .5dB to 20 KHz |
| Power Requirement | 5v DC regulated, 4 watt |
Source: AJA D10CEA SDI to Component/Composite Video Converter User Manual
All AJA D10CEA documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What video output formats does the D10CEA support?
The converter supports YPbPr (SMPTE/EBU N10), RGB, composite, and Y/C (S-Video) outputs.
From: AJA D10CEA SDI to Component/Composite Video Converter User Manual
How many audio channels are available on the output?
The device provides 4 channel balanced analog audio outputs.
From: AJA D10CEA SDI to Component/Composite Video Converter User Manual
What power supply is required for the HD10CEA?
The unit requires +5-18VDC power, and the AJA power supply model DWP or DWP-U is recommended.
From: AJA HD10CEA SDI/HD-SDI to Analog Audio/Video Converter Installation and Operation Guide
What happens if the input is HD-SDI?
When supplied with HD-SDI, only component SMPTE or RGB video output is possible from the HD10CEA.
From: AJA HD10CEA SDI/HD-SDI to Analog Audio/Video Converter Installation and Operation Guide
